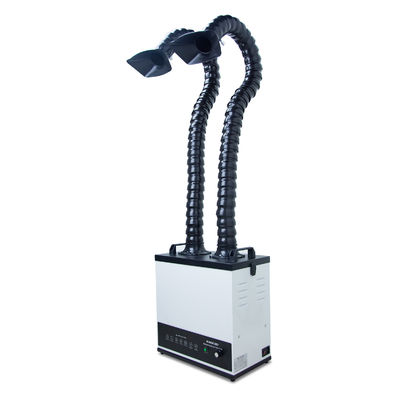

KNOKOO FED80 Double Weld Smoke Extractor Portable Lightweight Mobile Fume Extractor

KNOKOO FED80 Double Weld Smoke Extractor Portable Lightweight Mobile Fume Extractor

Brand Name: KNOKOO
Model Number: FED80
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000
Detail Information
Model:
Welding Fume Extractor FED80
Cover Type:
Square Cover
Power:
200W
Vac:
AC220V 50Hz
Packaging Details:
43*47*59CM/box
Supply Ability:
1000
Highlight:

Double Weld Smoke Extractor

,

Weld Smoke Extractor Portable

,

Lightweight Mobile Fume Extractor

Product Description

KNOKOO FED80 Double Welding Fume Extractor High Efficiency Laser Smoke Purifier For Welding Booths  DIY And Hobbyist Welders

Product Description:

The 200W Welding Smoke Purifier is a compact and efficient air filtration system designed to capture and filter harmful smoke, fumes, and particulates generated during welding processes. With its energy-efficient motor and advanced filtration technology, it ensures clean air in workshops, factories, and other welding environments.


1. Energy-Efficient Motor

200W power consumption ensures cost-effective operation with consistent performance.

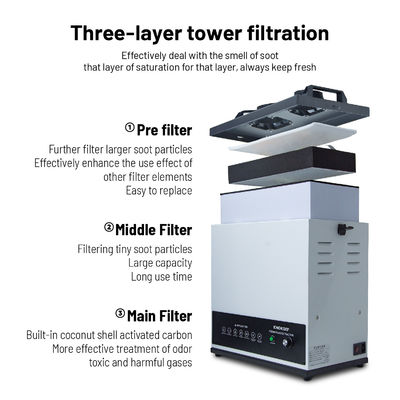

2. Multi-Stage Filtration System

Includes HEPA and activated carbon filters to capture particulates and neutralize harmful gases.



3. Portable and Lightweight Design

Easy to move between workstations with built-in handles and optional caster wheels.



4. Adjustable Suction Power

Allows customization of airflow based on welding intensity and workspace requirements.



5. Quiet Operation

Engineered for low noise levels, ensuring minimal disturbance in shared workspaces.



6. Durable Construction

Built with high-quality materials to withstand harsh industrial conditions.



7. Easy Maintenance

Features a simple filter replacement mechanism to minimize downtime.



Technical Parameters:

Model FED80 Welding Fume Extractor
Color White
Cover type Square cover
Noise <60dB
Filtering Efficiency 0.3um 99.99%
Vac AC220V 50Hz
Power 200W
Air Volume 320m3/h
Air Velocity 2 X10 M/s
Port ∅75mm X 2
Dimensions(mm) W420xT240xH450
Weight (No Smoking Arm) 18 Kg


Applications:



Metal Fabrication Shops

Suitable for TIG, MIG, and arc welding stations to remove harmful fumes and fine particulates.



Small Workshops

Ideal for individual welding booths or compact workspaces with limited ventilation.



Automotive Repair

Removes fumes from welding during vehicle repairs, including exhaust pipe and chassis work.



Educational Institutions

Perfect for welding training centers to ensure a safe learning environment.



Home-Based Welding

Compact size and easy portability make it suitable for DIY and hobbyist welders.



Artisanal Metalworking

Used in studios for metal sculptures, jewelry making, and custom metal design.





Overall, the KNOKOO FED80 Welding Fume Extractor is an excellent choice for anyone who needs to remove solder fumes from the air. Whether you're a professional electronics manufacturer or just an avid hobbyist, this product is sure to meet your needs. So if you're in the market for a high-quality fume extractor, be sure to check out the FED80 from KNOKOO.
