| Brand Name: | KNOKOO |
| Model Number: | FES060 |
| MOQ: | 1 |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 1000 |

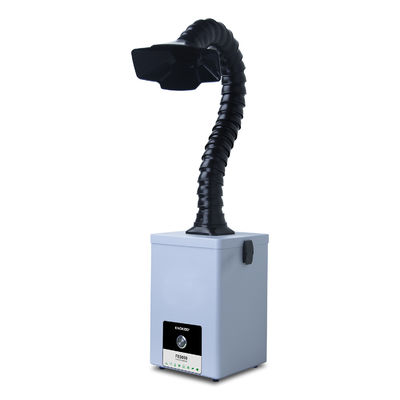

KNOKOO FES060 60W Portable Laser Fume Extractor: An "Invisible Air Guardian" for Low-Power Laser Work
Still frowning at the pungent odor during laser engraving? Worried about the harmful fumes from mobile phone repair soldering or DIY laser cutting damaging your health? The KNOKOO FES060 laser fume extractor is designed specifically for low-power laser scenarios—its low 60W power consumption combined with a two-stage high-efficiency filter captures 90.99% of particles as small as 0.3μm and toxic gases. Add to that a 360° rotating fume hood and a portable body weighing only 4.3Kg, and you can quickly purify the air during laser work (engraving, marking, welding), saying goodbye to the annoyance of "fume around the nose."
I. Core Advantages: Solving Pain Points in Small Laser Applications – From Functionality to Actual Benefits

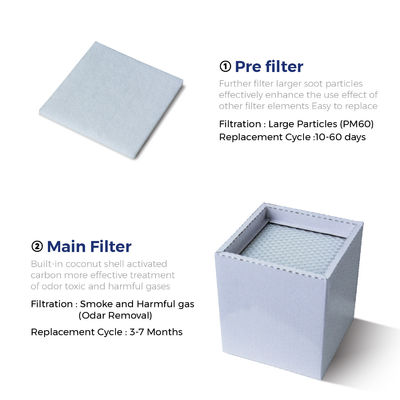

1. Two-Stage Precision Filtration + Coconut Shell Activated Carbon: Dual-Pronged Approach to Smoke and Odor Removal
First-Stage Pre-Filter: Specifically intercepts PM60 particles (such as metal shavings from laser cutting and engraving dust), replaceable every 10-60 days, effectively reducing main filter wear and extending overall filter life.
Second-Stage Main Filter: Contains built-in coconut shell activated carbon (with stronger adsorption capacity than ordinary activated carbon), efficiently handling smoke, toxic gases, and odors (such as the burnt plastic smell during laser marking and the flux smell during soldering), replaceable every 3-7 months.
Benefits: The two-stage filter can be replaced individually, eliminating the need for a complete replacement, reducing consumable costs; filtration efficiency reaches 90.99% (for 0.3μm particles), meeting the air purification needs of small laser operations (such as mobile phone repair and DIY laser engraving).

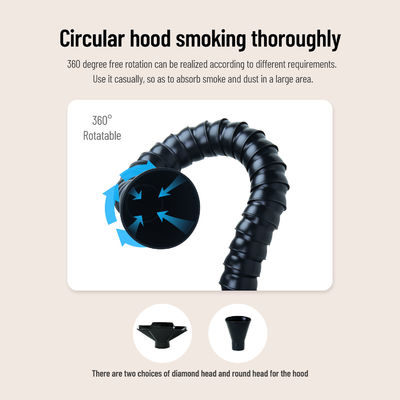

2. 360° Rotating Fume Hood + Dual Styles Available
The fume hood supports 360° free rotation, allowing for flexible angle adjustment based on the laser equipment's location (e.g., desktop laser marking machine, handheld laser engraving pen), precisely targeting the smoke source and preventing smoke from spreading into the breathing area.
Two fume hood styles are available: diamond head and round head. The diamond head is suitable for concentrated fume extraction (e.g., precision laser marking), while the round head is suitable for large-area fume extraction (e.g., laser cutting small workpieces), adapting to different work scenarios.
Details: The fume extraction port diameter is ∅50mm. With the included fume extraction tube, it can be easily connected to the machine body; installation requires no additional tools.
3. 60W Power + <50dB Quiet Operation
More energy-efficient, even with 8 hours of daily operation (e.g., in a small laser processing workshop), there's no need to worry about high electricity bills. Supports AC220V 50Hz voltage. Operating noise is <50dB (equivalent to the sound of turning pages in a library), allowing you to listen to music or make phone calls without interference during laser engraving. Especially suitable for home DIY workshops and small office laser operation scenarios, avoiding noise disturbance to others.
4. Miniature body + lightweight design, maximum portability
The body size is only L185W185H300mm (about the size of a desktop storage box) and weighs only 4.3Kg, so it can be placed next to laser equipment without taking up too much desktop space.
No fixed installation is required. Just connect the smoke tube and smoke hood after unpacking and it is ready to use. It is suitable for scenarios where the work location is frequently changed (such as on-site mobile phone repair, mobile DIY laser booths).
| Model | FES060 Solder Fume Extractor |
| Color | White |
| Noise | <50dB |
| Filtering Efficiency | 0.3um 90.99% |
| Vac | AC220V 50Hz |
| Power | 60W |
| Air Volume | 160m³/h |
| Filter Layer | 2 Stage |
| Port | ∅50mm |
| Dimensions(mm) | L185*W185*H300MM |
| Weight | 4.3Kg |
Package contents:
1 * Fume Extractor
1 * Smoking Pipe
1 * Smoking Cover
1 * Primary Filter Cotton
1 * Main Filter
1* Power Cord
1 * Manual
1. Laser marking: In the process of laser marking, a certain amount of smoke and dust will be produced, and the small Laser Fume Extractor can effectively absorb and filter these harmful substances to maintain the clean working environment and excellent air quality.
2. Laser engraving: Laser engraving operation will also produce smoke, small Laser Fume Extractor can ensure the air quality of the engraving area, protect the health of the operator.
3. Laser cutting: laser cutting process will produce a lot of smoke and particles, small Laser Fume Extractor through the efficient filtration system, these harmful substances from the air to provide a safe working environment for the operator.
4. Welding and tin welding: In the soldering iron welding, tin dipping and other operations, the small Laser Fume Extractor can filter out the smoke and harmful gases generated, especially for the purification of soldering iron solder and laser marking dust.
II. Frequently Asked Questions (Answers in Advance)
Q1: Will this fume extractor be compatible with my laser equipment? For example, a desktop laser engraving machine from a certain brand?
Absolutely! The FES060 laser fume extractor is designed as a "universal" type, compatible with all brands of low-power laser equipment (such as laser marking machines, engraving machines, and small laser cutting machines). Whether it's an industrial-grade desktop device or a mini laser pointer for home DIY, it can be used in any low-smoke operation scenario.
Q2: Is installation complicated? I'm a beginner and have no installation experience.
Not complicated at all! The package includes all accessories (fume extractor main unit, fume extraction tube, fume hood, pre-filter, main filter, power cord, and instruction manual). It only takes 3 steps: 1. Connect one end of the fume extraction tube to the main unit port and the other end to the fume hood; 2. Install the pre-filter and main filter into the corresponding positions on the machine; 3. Plug in the power and turn it on. The whole process takes less than 5 minutes, and even beginners can easily use it.
Q3: Is its airflow sufficient? For example, when laser cutting plastic, there's a lot of smoke; can it effectively remove it?
The FES060 has an airflow of 160m³/h, specifically designed for "small laser scenarios" with low smoke levels—such as laser cutting small plastic parts or laser marking metal surfaces, where smoke concentration is relatively low. The 160m³/h airflow can quickly draw in and filter the smoke. For large-area, high-concentration smoke scenarios (such as industrial-grade large-scale laser cutting), it's recommended to use a high-power fume extractor. Consult customer service for specific model recommendations.
Q4: Do I need to clean the inside of the unit after replacing the filter? How do I determine when the filter needs replacing?
Frequent cleaning of the inside of the unit is unnecessary! The pre-filter cotton intercepts most large particles, and the main filter primarily adsorbs small molecules. When replacing the filter, simply wipe the inside of the unit with a dry cloth to remove dust. Determining when to replace the filter is simple: 1. The pre-filter becomes noticeably dirty and blackened (usually every 10-60 days); 2. You can smell a distinct odor when smoking, or feel a decrease in smoke absorption (main filter usually lasts 3-7 months). Replace the corresponding filter in these cases.
Q5: Does this fume extractor have CE certification? Can it be used in small factories?
Yes, it has CE certification! The product meets EU safety standards and is safe for both home use and small factory workshops (such as a 5-10 person mobile phone repair shop or a small laser processing workshop). However, if there are multiple laser workstations in the workshop, it is recommended to use multiple units depending on the number of workstations, or choose a fume extractor with a larger airflow. Contact customer service for a scenario-specific solution.
1. After-sales service and warranty, eliminating your worries
Each FES060 laser fume extractor undergoes factory testing to ensure performance meets standards. If any quality issues are found upon receipt (such as inability to power on, damage to the machine), returns and exchanges are supported within 7 days (provided the packaging remains intact).
A 1-year warranty is provided for the main unit (filter cartridges are consumables and not covered by the warranty). For any operational problems or malfunctions encountered during use, please contact customer service for technical support; a response time of 24 hours is guaranteed.
2. Take Action Now for Safer Laser Operations
Whether you're a DIY laser enthusiast (engraving figurines, custom jewelry), a mobile phone repair shop owner (soldering fume removal), or a small laser processing workshop (marking, cutting operation purification), order the KNOKOO FES060 laser fume extractor now and enjoy "direct shipping from stock + complete accessories + beginner's guide" service—minimum order quantity is only 1 unit, supply capacity is up to 1000 units/batch, and payment methods are supported including T/T, Western Union, MoneyGram, etc. Bulk quotations are available for corporate purchases.
Click 【Inquire Now】 and tell us your specific use case (e.g., "desktop laser engraving" or "mobile phone repair soldering"), and customer service can help you confirm compatibility details; or place an order directly and say goodbye to fume worries sooner, protecting the respiratory health of yourself and your team!
