Laser Fume Extractor
Created with Pixso.

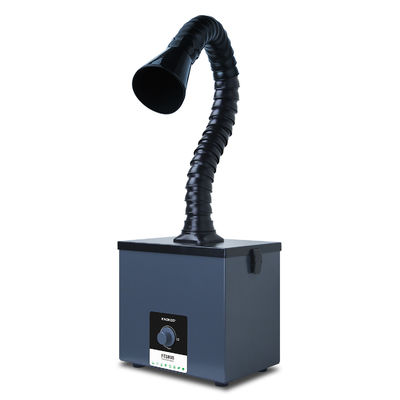

Mini Laser Fume Extractor FES80S Desk Smoke Absorber Portable Fume Extractor Unit

Mini Laser Fume Extractor FES80S Desk Smoke Absorber Portable Fume Extractor Unit

Brand Name: KNOKOO
Model Number: FES80S
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000
Detail Information
Cleaning Way:
Laser Fume Extractors
Model:
FES80S
Smart Type:
Smart Is Not Supported
Filter Type:
2 Filter
Power Supply Mode:
AC
Function:
Soldering Laser Engrave DIY Tools
Packaging Details:
35*20*35CM/box
Supply Ability:
10000
Highlight:

Mini Laser Fume Extractor

,

Laser Fume Extractor FES80S

,

Portable Fume Extractor Unit

Product Description

KNOKOO Mini Laser Fume Extractor FES80S Desk Smoke Absorber Portable Air Purify  For Soldering Laser Engrave DIY Tools

Product Description:

FES80S Fume Extractor is used in small laser engraving, mobile phone repair, silk screen printing, rosin welding, DIY Tools, etc.

1. Small size does not take up space.


2. Simple knob switch stepless speed regulation, work requires efficiency, turning the knob has completed the two   operations of starting and adjusting the wind speed.


3. DC pure copper brushless motor, surging energy, stable performance.


4. Universal bamboo tube - 360 degrees arbitrary bending adjustment, strong support effect, good high temperature resistance and sealing, not easy to age.


5. Large suction and noise reduction operation, employees can work at ease without being disturbed.

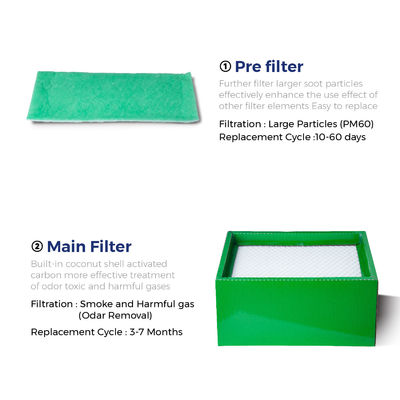

6. Two-layer tower filtration, more effective treatment of smoke and dust.

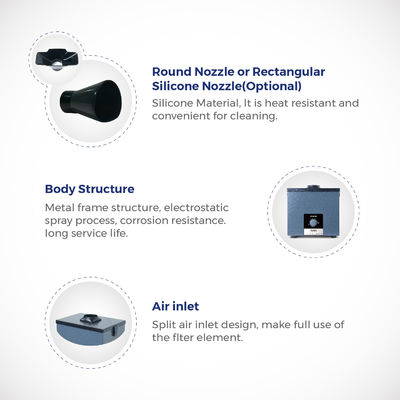

7. Fully sealed and smoke-free, box-type direct-draw filter element design, filter element replacement and maintenance can be opened by opening the cover, saving time and effort.



Technical Parameters

Product Name Solder Fume Extractor
Model FES80S
Cover type Square silicone cover
Colour Black
Vac AC220V 50Hz
Power 80W
Filtering Efciency 0.3um 95.99%
Noise <55dB
Length of Duct ∅50mm X0.75M
Air Velocity 160m³/h
Warranty 1 Years
Dimensions(mm) 286*115*275mm
Weight(No Smoking Arm) 7KG


Product use

The application scenarios of Solder Fume Extractors are mainly concentrated in places where soldering operations are required and workers' health and

environmental quality need to be protected. The following are some specific application scenarios:


1.Jewelry and Metalworking: In the jewelry and metalworking industries, welding is a common processing method. Laser Fume Extractor can ensure the safety of

the working environment and the quality of the products.

2.
DIY enthusiasts and home repairs: For those who like to carry out DIY activities at home or perform home repairs. Laser Fume Extractor can provide these home users with a safe and healthy working environment.
