KNOKOO Replacement Filter Set HEPA Filter For FED200 Laser Fume Extractor

Product Description:

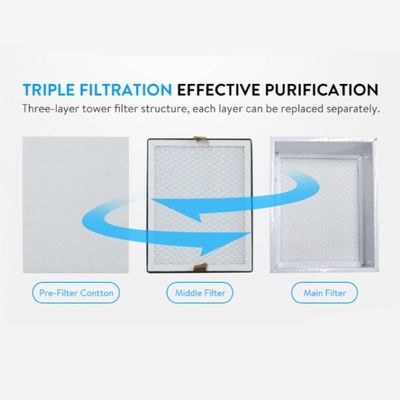

Composition

The filter cartridge combination is designed to provide a three-stage filtration system for enhanced air purification. It includes:

1. Pre-filter (Initial Stage)

2. HEPA Filter (Intermediate Stage)

3. Activated Carbon Filter (Final Stage)

These three layers work together to effectively filter and eliminate harmful smoke, dust, and gases. The multi-layer filtration ensures that pollutants are removed progressively, delivering a higher filtration efficiency. This combination helps protect users from harmful welding fumes and toxic gases.

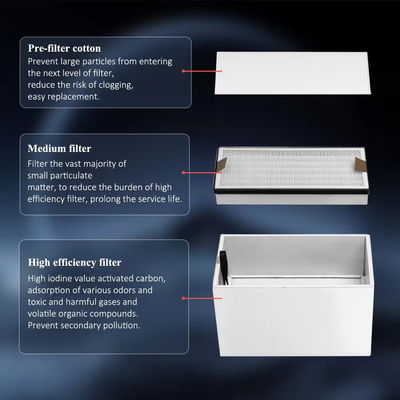

Filtration Capabilities

• Initial Stage: Pre-filter (PM60 filtration)

  • The first layer of the filtration system is a pre-filter made from highly durable and flexible industrial oil-absorbent cotton. It is designed to capture larger particles such as dust, dirt, and PM60 particles. The pre-filter blocks larger contaminants before they reach the finer filtration layers, ensuring better performance of the subsequent filters.

• Intermediate Stage: HEPA Filter (PM0.3 filtration)

  • The second layer features a HEPA filter designed to capture microscopic particles as small as 0.3 microns. This HEPA filter removes dust, asbestos, and other fine particles with a high filtration efficiency. It also helps eliminate tar and other volatile substances that may harm sensitive machinery components.

• Final Stage: Activated Carbon Filter

  • The last layer features an activated carbon filter with a nano-composite carbon core, designed to break down harmful gases, odors, and volatile organic compounds (VOCs). It provides excellent protection against toxic fumes, such as welding smoke and other airborne pollutants, ensuring the air is thoroughly purified.

Compatibility

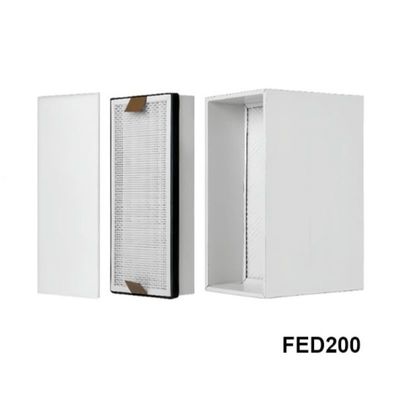

• This filter combination is specifically designed for the KNOKOO FED200 Fume Extractor, ensuring perfect compatibility. It can seamlessly replace the old filters in your unit, delivering improved filtration efficiency and long-lasting performance.

Product parameters:

Product use:

Easy Replacement

• Each filter layer in the combination can be replaced individually, making maintenance straightforward and cost-effective. Replacing just one layer at a time ensures that the other filters can continue to function effectively, extending the life of the overall filtration system. Regular pre-filter replacement can help reduce wear on the more expensive HEPA and activated carbon filters, reducing maintenance costs over time.

Replacement Cycle

Each filter in the combination has a unique replacement cycle, which should be adjusted based on the environmental conditions and pollution levels:

• Pre-filter: Recommended replacement period is 10-60 days, depending on usage and contamination levels.

• HEPA Filter: The HEPA filter should be replaced every 5-8 months to ensure optimal performance.

• Activated Carbon Filter: This final filter is recommended for replacement every 6-12 months, depending on the specific usage conditions and the type of pollutants being filtered.

Maintenance & Care

Regular maintenance is crucial to ensure optimal air purification performance. The following steps should be taken:

• Inspect regularly: Check filters for visible damage, heavy dirt accumulation, or deterioration. Regularly inspect the filters for any clogging that may impair the system’s performance.
• Replace filters timely: Ensure that filters are replaced within the recommended timeframe to avoid any performance degradation.
• Keep filter compartments clean: Ensure that the filter housing and surrounding areas are clean to prevent any contamination from affecting the filter's efficiency.

Precautions

• Store and Use Properly: Avoid storing filters in high-temperature (above 60°C), humid, or flammable environments to prevent damage and accidents.

• Use Original Filters: Always use the original KNOKOO filters for optimal performance. Using non-original filters may compromise the air quality and cause premature damage to the fume extractor.

• Regular Filter Replacement: Periodic filter replacement is necessary to maintain the effectiveness of the system. Neglecting to replace filters in a timely manner could result in reduced filtration efficiency and affect the system's performance.
