MEASTEK MDP4070C High Voltage Differential Probe 700V 200MHz Electronics Test Instruments

Name: MEASTEK MDP4070C High Voltage Differential Probe 700V 200MHz Electronics Test Instruments
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MDP4070B
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MDP4070B
MOQ:	1
Payment Terms:	,T/T,Western Union,MoneyGram
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Supply Ability:

1000

Highlight:

200MHz High Voltage Differential Probe

700V High Voltage Differential Probe

Electronics Test Instruments Voltage Differential Probe

Product Description

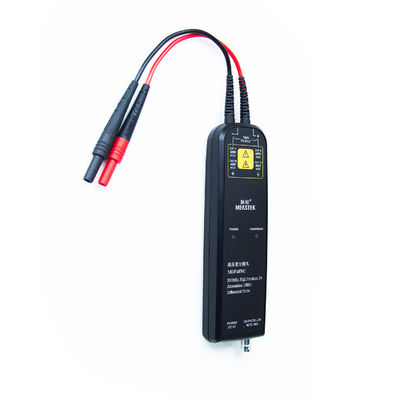

MEASTEK MDP4070C High Voltage Differential Probe – 700V 200MHz for Power Electronics & Motor Drive Testing

1. Wide range and high bandwidth
・Voltage range: 700V (covering MDP4070B and MDP4070C models)
・Bandwidth: up to 200MHz (MDP4070C), supports high-voltage circuit (inverter, power supply equipment) and high-speed signal (PWM waveform) measurement

2. Keyless integrated design
・No mechanical buttons, maintenance-free, extending service life
・Ergonomic handle, no fatigue after long-term operation

3. Plug and play full compatibility
・Standard BNC interface adapts to global oscilloscopes (Tektronix, Keysight, etc.)
・Impedance adaptation:

4. Intelligent and efficient
・Power-off memory last setting, no need for repeated calibration
・High common mode rejection ratio (CMRR), filter noise to ensure signal purity

5. High-precision core indicators
・Input impedance: 2.5MΩ (typical value), low load influence
・Input capacitance: <4pF, high-frequency signal without distortion

6. Typical applications
Power supply R&D / Maintenance (switching power supply, UPS, inverter); industrial control (inverter, motor drive); home appliances (inverter air conditioner, induction cooker waveform analysis)

Specifications

Model	MDP4070C
Bandwidth (-3dB)	200 MHz
Rise time (ns)	≤1.75
Accuracy	1%
Attenuation ratio	100X
Maximum differential measurement voltage (DC+Peak AC)	±700Vpk
RMS	±500Vrms
Maximum input voltage to ground (Vrms)	450V CATII 600V CATI
Common mode voltage(DC+Peak AC)	±700Vpk
Input Impedance	Single-ended to ground 2.5MΩ
Input Impedance	Two input terminals 5MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	＜120mV
Delay time	Host: about 9ns

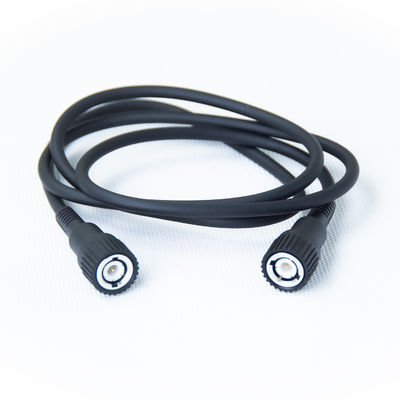

Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	＞700Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ

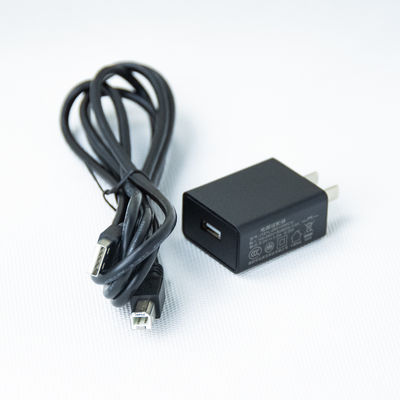

power supply	USB 5V/1A adapter
