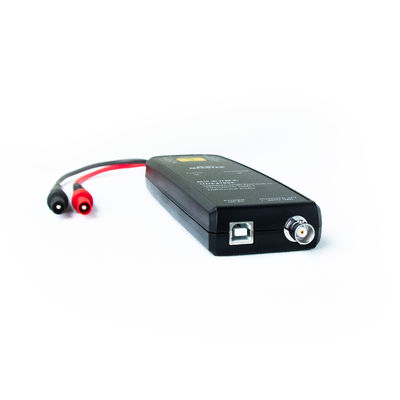

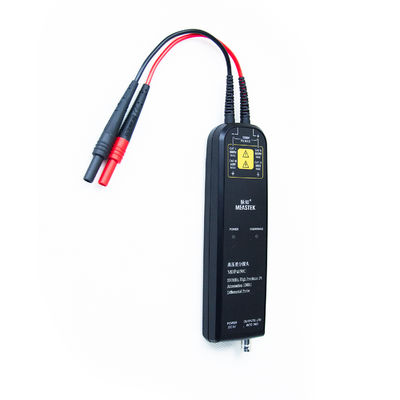

MEASTEK MDP4150C High Voltage Differential Probe 200MHz bandwidth, 500X attenuation ratio, overload protection and low noise

1. Ultra-high voltage measurement capability
Supports ±1500V peak differential voltage and ±1500V common mode voltage , meeting the test requirements of high-voltage devices such as IGBT and MOSFET.
600V CATII/1000V CATI safety level, built-in overload protection (＞1500Vpk triggers red light alarm) to ensure safe operation.

2. High precision and high bandwidth
200MHz bandwidth + 3.5ns rise time, suitable for high-frequency scenarios such as switching power supplies and inverters.
1% accuracy + 500X attenuation ratio to achieve accurate restoration of tiny signals.

3. Low load effect design
10MΩ differential impedance + ＜2pF input capacitance, minimizes the impact on the circuit under test, suitable for high impedance node measurement.

4. Anti-interference and stability
High common mode rejection ratio (DC 80dB), effectively suppresses noise and improves signal integrity.
Delay time compensation: 9ns on the host side/5ns on 1m cable, supports multi-channel synchronous testing.

5. Convenient functions
USB 5V power supply, no additional power supply required, compatible with oscilloscopes and other devices.

Specifications

Model	MDP4150C
Bandwidth (-3dB)	200 MHz
Rise time (ns)	≤1.75
Accuracy	1%
Attenuation ratio	500X
Maximum differential measurement voltage (DC+Peak AC)	±1500Vpk
RMS	±1060Vrms
Maximum input voltage to ground (Vrms)	600V CATII 1000V CATI
Common mode voltage(DC+Peak AC)	±1500Vpk
Input Impedance	Single-ended to ground 5MΩ
Input Impedance	Two input terminals 10MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	＜300mV
Delay time	Host: about 9ns
Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	＞1500Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ
power supply	USB 5V/1A adapter

Applications

Floating voltage measurement	Power battery failure analysis
Inverter	Switching power supply design
Welding, electroplating power supply	Induction heating, induction cooker
Motor drive design	Electronic ballast design
Electrical experiment	Inverter, UPS power supply
Frequency conversion appliances	Power conversion and other related designs
Low voltage electrical appliance test	Power electronics and power transmission experiment, etc.
igh and medium voltage inverters (inverters)	Efficiency evaluation of wireless power transmission systems (WPT)

Packing List

Name	Quantity
High-voltage differential probe	1 piece
Test hook	1 pair
Input extension cable	1 pair
BNC output cable	1 piece
Power output cable	1 piece
Power adapter	1 piece
Test report	1 piece
Warranty card	1 piece
Probe box	1 piece
