MEASTEK MDP4300B BNC Fully Compatible With 100MHz High Voltage Probe

Name: MEASTEK MDP4300B BNC Fully Compatible With 100MHz High Voltage Probe
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MDP4300B
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MDP4300B
MOQ:	1
Payment Terms:	,T/T,Western Union,MoneyGram
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Supply Ability:

1000

Product Description

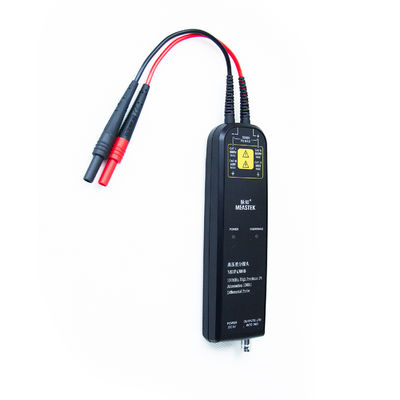

MEASTEK MDP4300B BNC Fully Compatible With 100MHz High Voltage Probe

Key Features:

1. Military-grade durability design
* Buttonless integrated body: eliminate mechanical failure points and increase life by 3 times
* IP54 protection: dust and splash proof, suitable for harsh industrial environments
* Overload red light warning: >3000Vpk automatic alarm to prevent damage caused by misoperation.

2. Plug and play full compatibility
* Standard BNC interface: compatible with all brands of oscilloscopes such as Keysight/TEK/Dingyang/Puyuan.

3. Intelligent functions improve efficiency
* Automatic save function: real-time storage of waveform data, no loss when power is off
* Dual delay compensation: 9ns+1m cable 5ns on the host side, support for multi-channel synchronous analysis
* Low noise design: <600mv Vrms noise floor, small signals are clearly visible

Specifications

Model	MDP4300B
Bandwidth (-3dB)	100 MHz
Rise time (ns)	≤3.5
Accuracy	1%
Attenuation ratio	1000X
Maximum differential measurement voltage (DC+Peak AC)	±3000Vpk
RMS	±2120Vrms
Maximum input voltage to ground (Vrms)	600V CATII 1000V CATI
Common mode voltage(DC+Peak AC)	±3000Vpk
Input Impedance	Single-ended to ground 5MΩ
Input Impedance	Two input terminals 10MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	＜600mV
Delay time	Host: about 9ns
Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	＞3000Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ
power supply	USB 5V/1A adapter

Applications

1. Power electronics
▸ Switching power supply primary side waveform measurement (Vds＞1200V)
▸ Inverter bridge arm upper and lower tube drive timing analysis

2. New energy
▸ Charging pile PFC circuit high voltage differential test
▸ Battery pack BMS balancing circuit voltage monitoring

3. Industrial control
▸ Inverter IGBT module turn-on/off loss test
▸ Servo motor driver high voltage bus ripple analysis

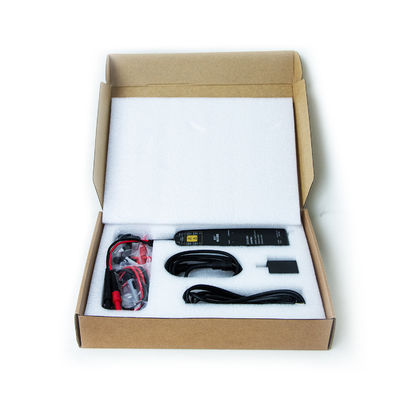

Packing List

Name	Quantity
High-voltage differential probe	1 piece
Test hook	1 pair
Input extension cable	1 pair
BNC output cable	1 piece
Power output cable	1 piece
Power adapter	1 piece
Test report	1 piece
Warranty card	1 piece
Probe box	1 piece

Tags:
