MEASTEK MDP5070C High Voltage Differential Probe, 200MHz 700V, BNC All-Around Compatible, Auto-Save, One-Key Zero Calibration

Name: MEASTEK MDP5070C High Voltage Differential Probe, 200MHz 700V, BNC All-Around Compatible, Auto-Save, One-Key Zero Calibration
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MDP5070C
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MDP5070C
MOQ:	1
Payment Terms:	,T/T,Western Union,MoneyGram
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Supply Ability:

1000

Highlight:

BNC High Voltage Differential Probe

200MHz High Voltage Differential Probe

700V High Voltage Differential Probe

Product Description

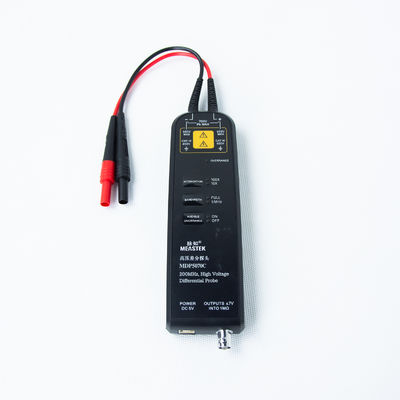

MEASTEK MDP5070C High Voltage Differential Probe, 200MHz 700V, BNC All-Around Compatible, Auto-Save, One-Key Zero Calibration

Key Features:

【Ultra-High Voltage Measurement】
±700Vpk differential voltage + 200MHz bandwidth
Ideal for IGBT, MOSFET, and high-voltage power supply testing

【Universal Compatibility】
Standard BNC connector works with ALL oscilloscopes (1MΩ/50Ω switchable)
10X/100X attenuation ratio auto-detected

【Smart Calibration System】
One-key zero adjustment for offset correction
Auto-save function prevents data loss on power off

【Safety & Durability】
CE/UL certified, overload protection >700Vpk (red light alarm)
IP54 waterproof, 100,000+ keystrokes life test

【Fast Shipping】
2-year warranty + 24/7 professional support

Specifications

Model	MDP5070C
Bandwidth (-3dB)	200 MHz
Rise time (ns)	≤1.8
Accuracy	1%
Attenuation ratio	10X/100X
Maximum differential measurement voltage (DC+Peak AC)	10X ±70Vpk
Maximum differential measurement voltage (DC+Peak AC)	100X ±700Vpk
Effective value	10X ±50Vrms
Effective value	100X ±500Vrms
Maximum input voltage to ground (Vrms)	450V CATII 600V CATI
Common mode voltage(DC+Peak AC)	±700Vpk
Input Impedance	Single-ended to ground 2.5MΩ
Input Impedance	Two input terminals 5MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	10X ＜20mV
Noise (Vrms)	100X ＜120mV
Delay time	Host: about 9ns
Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	10X ＞70Vpk
Overload indicator voltage threshold	100X ＞700Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ
power supply	USB 5V/1A adapter

Applications

* Floating measurement
* Switching power supply design
* Power converter design
* Inverter and UPS design
* Electronic ballast design
* Motor drive design
* Induction heating and cooker design
* CRT display design
* Low-voltage appliances
* Electronic power and drive experiments

Probe Standard Accessories

Name	Object	Parameters
Alligator Clips		CATIII 1000V CATIV 600V
Piston probe clamp		CATIII 1000V
Test Hook		CATII 1000V
Input extension cord		CATIII 1000V
BNC output cable		BNC male to male output cable (length 1 meter)
Power output line		Length 1 meter
Power adapter		USB 5V/1A

WARNING: To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C probes or hook tip accessories on CAT III or CAT IV circuits. To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C test probes or hook tip accessories on circuits above 7000V when using the MDP5070A/ MDP5070B/ MDP5070C probes.
Use only accessories rated for the application. Substituting other accessories may create a risk of electric shock or burns. Keep the probe body and accessories clean to reduce the risk of electric shock from conductive surfaces.

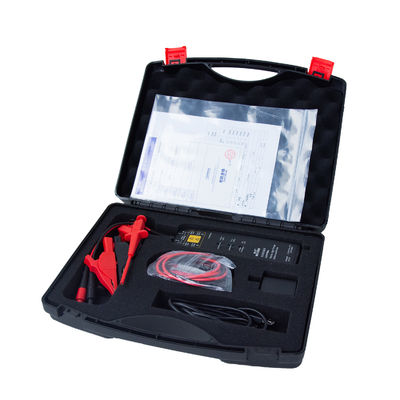

Packing List

Name	Quantity
High-voltage differential probe	1 piece
Alligator Clips	1 pair
Piston probe clamp	1 pair
Test hook	1 pair
Input extension cable	1 pair
BNC output cable	1 piece
Power output cable	1 piece
Power adapter	1 piece
Test report	1 serving
Warranty card	1 piece

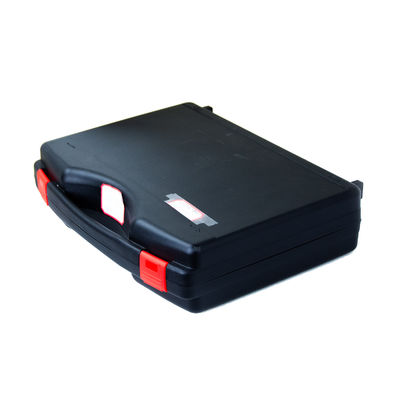

Probe box	1 piece
