MEASTEK MDP5150A Switching Power Supply Test Probe 70MHz Bandwidth Anti-interference Automatic Data Saving

Name: MEASTEK MDP5150A Switching Power Supply Test Probe 70MHz Bandwidth Anti-interference Automatic Data Saving
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MDP5150A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MDP5150A
MOQ:	1
Payment Terms:	,T/T,Western Union,MoneyGram
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Supply Ability:

1000

Highlight:

Switching Power Supply Test Probe

MEASTEK MDP5150A Test Probe

Product Description

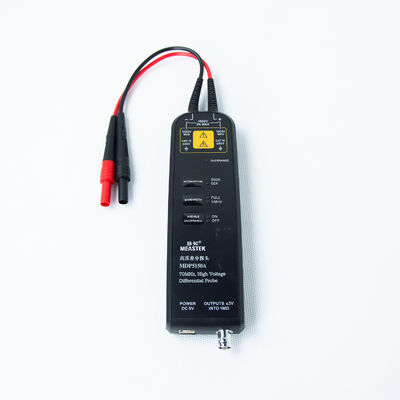

MEASTEK MDP5150A Switching power supply test probe 70MHz bandwidth Anti-interference Automatic data saving

Key Features:

【Ultra-High Voltage Measurement】
±1500Vpk differential voltage + 70MHz bandwidth
Ideal for IGBT, MOSFET, and high-voltage power supply testing

【Universal Compatibility】
Standard BNC connector works with ALL oscilloscopes (1MΩ/50Ω switchable)
50X/500X attenuation ratio auto-detected

【Smart Calibration System】
One-key zero adjustment for offset correction
Auto-save function prevents data loss on power off

【Safety & Durability】
CE/UL certified, overload protection >700Vpk (red light alarm)
IP54 waterproof, 100,000+ keystrokes life test

【Fast Shipping】
2-year warranty + 24/7 professional support

Specifications

Model	MDP5150A
Bandwidth (-3dB)	70 MHz
Rise time (ns)	≤5
Accuracy	1%
Attenuation ratio	50X/500X
Maximum differential measurement voltage (DC+Peak AC)	50X ±150Vpk
Maximum differential measurement voltage (DC+Peak AC)	500X ±1500Vpk
Effective value	50X ±106Vrms
Effective value	500X ±1060Vrms
Maximum input voltage to ground (Vrms)	600V CATII 1000V CATI
Common mode voltage(DC+Peak AC)	±1500Vpk
Input Impedance	Single-ended to ground 2.5MΩ
Input Impedance	Two input terminals 5MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	50X ＜50mV
Noise (Vrms)	500X ＜300mV
Delay time	Host: about 9ns
Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	50X ＞150Vpk
Overload indicator voltage threshold	500X ＞1500Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ
power supply	USB 5V/1A adapter

Applications

* Floating measurement
* Switching power supply design
* Power converter design
* Inverter and UPS design
* Electronic ballast design
* Motor drive design
* Induction heating and cooker design
* CRT display design
* Low-voltage appliances
* Electronic power and drive experiments

Probe Standard Accessories

Name	Object	Parameters
Alligator Clips		CATIII 1000V CATIV 600V
Piston probe clamp		CATIII 1000V
Test Hook		CATII 1000V
Input extension cord		CATIII 1000V
BNC output cable		BNC male to male output cable (length 1 meter)
Power output line		Length 1 meter
Power adapter		USB 5V/1A

WARNING: To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C probes or hook tip accessories on CAT III or CAT IV circuits. To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C test probes or hook tip accessories on circuits above 7000V when using the MDP5070A/ MDP5070B/ MDP5070C probes.
Use only accessories rated for the application. Substituting other accessories may create a risk of electric shock or burns. Keep the probe body and accessories clean to reduce the risk of electric shock from conductive surfaces.

Packing List

Name	Quantity
High-voltage differential probe	1 piece
Alligator Clips	1 pair
Piston probe clamp	1 pair
Test hook	1 pair
Input extension cable	1 pair
BNC output cable	1 piece
Power output cable	1 piece
Power adapter	1 piece
Test report	1 serving
Warranty card	1 piece
Probe box	1 piece
