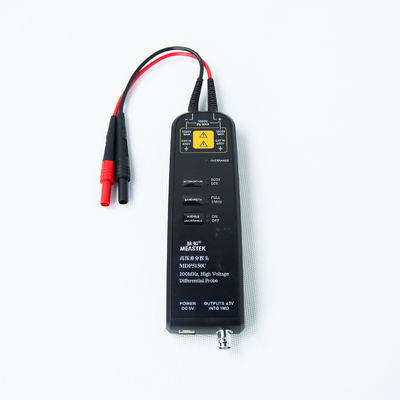

MEASTEK MDP5150C 200MHz High Voltage Differential Probe 1500V Range Dual Attenuation Ratio BNC Full Compatible Anti-interference

Key Features:

[High-voltage test pain point terminator]
±1500V over-range design solves the problem of inverter bus voltage measurement
200MHz bandwidth + 1% accuracy, accurately restore PWM waveform details

[Anti-interference golden combination]
80dB CMRR (DC) + 5MΩ high impedance, suppress common mode noise
2pF ultra-low capacitance, avoid high-frequency signal distortion (measured rising edge error <0.3ns)

[One-button intelligent operation]
Automatic zeroing function, complete temperature drift calibration in 5 seconds
Light-touch button design, 100,000 life test more durable

[Multi-scenario adaptation]
Charging pile PFC circuit high-voltage differential measurement
Switching power supply transformer primary side waveform analysis
Variable frequency home appliance motor drive signal debugging

Specifications

Model	MDP5150C
Bandwidth (-3dB)	200 MHz
Rise time (ns)	≤1.8
Accuracy	1%
Attenuation ratio	50X/500X
Maximum differential measurement voltage (DC+Peak AC)	50X ±150Vpk
Maximum differential measurement voltage (DC+Peak AC)	500X ±1500Vpk
Effective value	50X ±106Vrms
Effective value	500X ±1060Vrms
Maximum input voltage to ground (Vrms)	600V CATII 1000V CATI
Common mode voltage(DC+Peak AC)	±1500Vpk
Input Impedance	Single-ended to ground 2.5MΩ
Input Impedance	Two input terminals 5MΩ
Input Capacitance	Single-ended to ground <4pF
Input Capacitance	Two input ends <2pF
CMRR	DC ＞80dB
	100kHz＞60dB
	1MHz＞50dB
Noise (Vrms)	50X ＜50mV
Noise (Vrms)	500X ＜300mV
Delay time	Host: about 9ns
Delay time	BNC cable 1m: about 5ns
Overload indicator voltage threshold	50X ＞150Vpk
Overload indicator voltage threshold	500X ＞1500Vpk
Overload indicator light (red light)	Yes
Auto-save function	Yes
Terminal load requirement	≥100kΩ
power supply	USB 5V/1A adapter

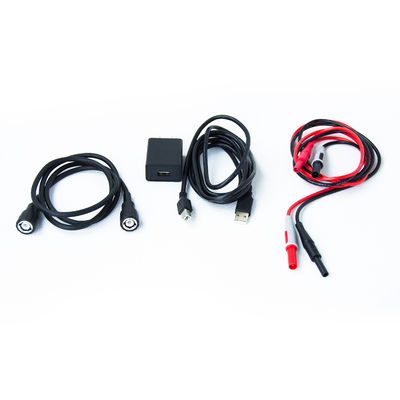

Probe Standard Accessories

Name	Object	Parameters

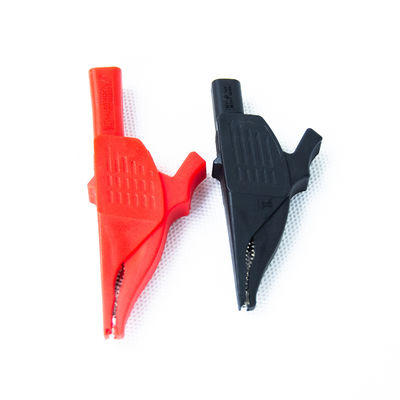

Alligator Clips		CATIII 1000V CATIV 600V

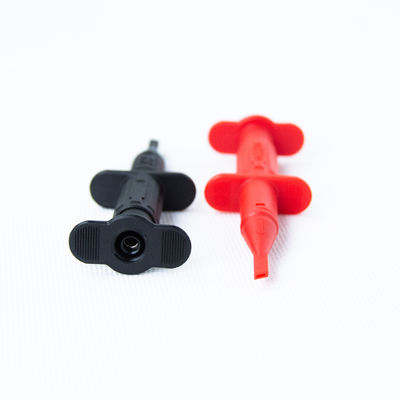

Piston probe clamp		CATIII 1000V
Test Hook		CATII 1000V
Input extension cord		CATIII 1000V
BNC output cable		BNC male to male output cable (length 1 meter)
Power output line		Length 1 meter
Power adapter		USB 5V/1A

WARNING: To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C probes or hook tip accessories on CAT III or CAT IV circuits. To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C test probes or hook tip accessories on circuits above 7000V when using the MDP5070A/ MDP5070B/ MDP5070C probes.
Use only accessories rated for the application. Substituting other accessories may create a risk of electric shock or burns. Keep the probe body and accessories clean to reduce the risk of electric shock from conductive surfaces.

Packing List

Name	Quantity
High-voltage differential probe	1 piece
Alligator Clips	1 pair
Piston probe clamp	1 pair
Test hook	1 pair
Input extension cable	1 pair
BNC output cable	1 piece
Power output cable	1 piece
Power adapter	1 piece
Test report	1 serving
Warranty card	1 piece
Probe box	1 piece
