MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth

MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth

MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth

Brand Name: MEASTEK
Model Number: HDP6007
MOQ: 1
Payment Terms: ,T/T,Western Union,MoneyGram
Supply Ability: 1000
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN
Certification:
CE
Supply Ability:
1000
Highlight:

5MHz Bandwidth Differential Probe

,

10X Attenuation Differential Probe

,

High Precision Differential Probe

Product Description

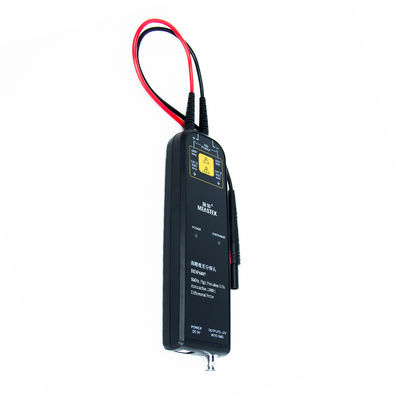

MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth


Key Features:

Professional-grade accuracy

0.1% high-precision measurement ensures the reliability of signal acquisition and is suitable for precision electronic testing.


Wide voltage range

Supports ±70Vpk differential voltage measurement to meet the needs of low-voltage circuits, power modules and other scenarios.


Low noise design

Noise <20mVrms, providing clear signal output and reducing test interference.


Safety certification

Meets CAT II 450V safety standards to ensure user operation safety.


Portable and compatible

USB 5V power supply, equipped with alligator clips, test hooks and BNC output cables, suitable for mainstream oscilloscopes.


Specifications

Model

HDP6007
Bandwidth (-3dB)

5 MHz
Rise time

≤70ns
Accuracy

0.1%
Attenuation ratio

10X

Maximum differential measurement voltage

(DC+Peak AC)

±70Vpk
Effective value

±50Vrms
Maximum input voltage to ground (Vrms)

450V CATII
Common mode voltage(DC+Peak AC)

±70Vpk
Input Impedance Single-ended to ground  2.5MΩ
Two input terminals  5MΩ
Input Capacitance Single-ended to ground  ＜4pF
Two input ends               ＜2pF

CMRR

 DC ＞80dB
100kHz＞60dB
1MHz＞50dB
Noise (Vrms)

＜20mV
Delay time Host: about 9ns
BNC cable 1m: about 5ns
Overload indicator voltage threshold

≥70Vpk
Overload indicator light (red light)  Yes
Auto-save function Yes
Terminal load requirement ≥100kΩ
power supply USB 5V/1A adapter



Probe Standard Accessories


Name Object Parameters
Alligator Clips MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 0

CATIII 1000V

CATIV 600V
Test Hook MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 1

CATII 1000V
Input extension cord MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 2

CATIII 1000V
Power output line MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 3 Length 1 meter
Power adapter

USB 5V/1A
BNC output cable MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 4 Choose 1 from 3 BNC male to male output cable, length 1 meter
(for use with measuring instruments with BNC interface such as oscilloscopes and oscilloscope recorders)
BNC to banana plug MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 5 BNC male to banana output cable, length 1 meter
(For use with power analyzers, power meters, desktop multimeters and other measuring instruments with banana interface)
BNC to electronic cable MEASTEK HDP6007 High Precision Differential Probe 10X Attenuation,±70Vpk Wide Voltage Measurement 0.1% Accuracy 5MHz Bandwidth 6 BNC male to electronic output cable, length 1 meter
(for use with measuring instruments with two-terminal signal input interfaces such as data loggers and power meters)



Packing List

Name
 Quantity
BNC output cable According to the host interface type:
Choose one of the three		 1 piece
BNC to banana plug
BNC to electronic cable
High Precision Differential Probe 1 piece
Alligator Clips 1 pair
Test Hook 1 pair
Input extension cord 1 pair
Power output line 1 piece
Power adapter 1 piece
Test report 1 serving
Warranty card 1 piece

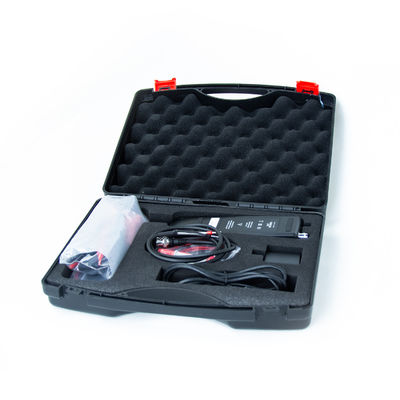

Probe Box 1 piece

Note: BNC male to male output cable, BNC male to banana plug output cable, BNC male to electronic cable, three types of output cables can be selected according to the host interface input type matched by the customer.
