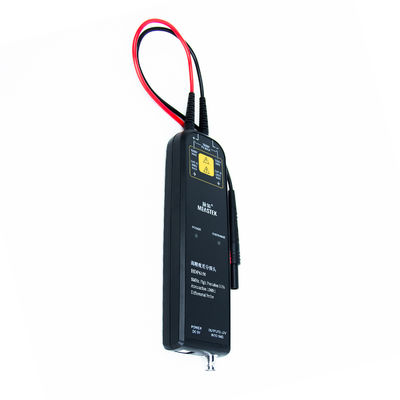

MEASTEK HDP6150 Industrial Differential Probe High Impedance Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety


Key Features:

Industrial-grade voltage support

±1500Vpk maximum differential voltage, designed for power electronics and industrial control systems.


High input impedance

5MΩ single-ended to ground, reducing the impact on the circuit under test.


Low noise output

noise <300mVrms, ensuring stability in high-sensitivity measurement environments.


Safety certification

Meets CAT II 1000V standard, suitable for medium and high voltage circuit test scenarios.


Convenient accessory package

Contains input extension cable, test hook and a variety of BNC adapters to meet diverse connection needs.


Specifications

Model

HDP6150
Bandwidth (-3dB)

5 MHz
Rise time

≤70ns
Accuracy

0.1%
Attenuation ratio

200X

Maximum differential measurement voltage

(DC+Peak AC)

±1500Vpk
Effective value

±1060Vrms
Maximum input voltage to ground (Vrms)

1000V CATII
Common mode voltage(DC+Peak AC)

±1500Vpk
Input Impedance Single-ended to ground  5MΩ
Two input terminals  10MΩ
Input Capacitance Single-ended to ground  ＜4pF
Two input ends               ＜2pF

CMRR

 DC ＞80dB
100kHz＞60dB
1MHz＞50dB
Noise (Vrms)

＜300mV
Delay time Host: about 9ns
BNC cable 1m: about 5ns
Overload indicator voltage threshold

≥1500Vpk
Overload indicator light (red light)  Yes
Auto-save function Yes
Terminal load requirement ≥100kΩ
power supply USB 5V/1A adapter



Probe Standard Accessories


Name Object Parameters
Alligator Clips MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 0

CATIII 1000V

CATIV 600V
Test Hook MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 1

CATII 1000V
Input extension cord MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 2

CATIII 1000V
Power output line MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 3 Length 1 meter
Power adapter

USB 5V/1A
BNC output cable MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 4 Choose 1 from 3 BNC male to male output cable, length 1 meter
(for use with measuring instruments with BNC interface such as oscilloscopes and oscilloscope recorders)
BNC to banana plug MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 5 BNC male to banana output cable, length 1 meter
(For use with power analyzers, power meters, desktop multimeters and other measuring instruments with banana interface)
BNC to electronic cable MEASTEK HDP6150 Differential Probe 200X Attenuation ±1500Vpk Measurement 5MHz Bandwidth CAT II 1000V Safety 6 BNC male to electronic output cable, length 1 meter
(for use with measuring instruments with two-terminal signal input interfaces such as data loggers and power meters)

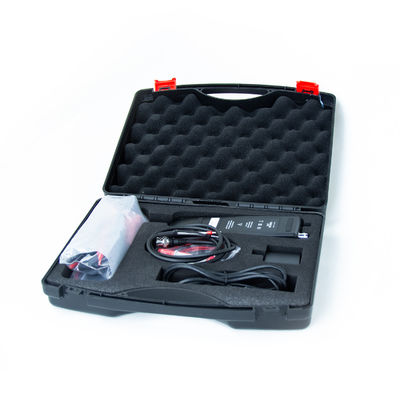

Packing List

Name
 Quantity
BNC output cable According to the host interface type:
Choose one of the three		 1 piece
BNC to banana plug
BNC to electronic cable
High Precision Differential Probe 1 piece
Alligator Clips 1 pair
Test Hook 1 pair
Input extension cord 1 pair
Power output line 1 piece
Power adapter 1 piece
Test report 1 serving
Warranty card 1 piece
Probe Box 1 piece

Note: BNC male to male output cable, BNC male to banana plug output cable, BNC male to electronic cable, three types of output cables can be selected according to the host interface input type matched by the customer.
