MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance

MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance

MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance

Brand Name: MEASTEK
Model Number: HDP6350
MOQ: 1
Payment Terms: ,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN
Certification:
CE
Highlight:

3500Vpk High Precision Probe

,

500X Attenuation High Precision Probe

,

Low Input Capacitance High Precision Probe

Product Description

MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design


Key Features:

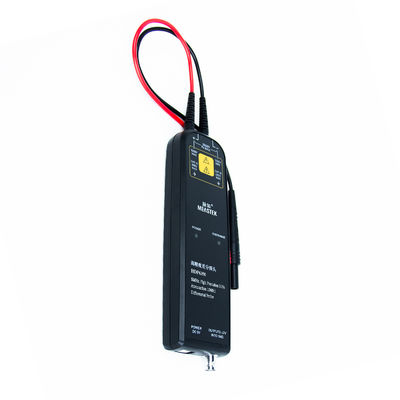

1. The ultra-high voltage probe supports ±3500Vpk differential voltage (500X attenuation probe), which is specially designed for photovoltaic test tools and is suitable for accurate measurement of photovoltaic inverters, high-voltage power supplies and other scenarios.


2. The low-capacitance differential probe has a single-ended input capacitance to ground of <4pF, which effectively reduces the attenuation of high-frequency signals and ensures the true restoration of waveforms.


3. The automatic save probe is equipped with a one-key save function, which can quickly store key data and significantly improve test efficiency.


4. The anti-interference design is adopted, with a CMRR of >50dB at 1MHz to ensure signal integrity in complex electromagnetic environments.


5. Standard CAT III 1000V alligator clips and extension cords are provided to enhance the safety of operation in high-voltage environments and meet industrial-grade testing requirements.


Specifications

Model

HDP6350
Bandwidth (-3dB)

5 MHz
Rise time

≤70ns
Accuracy

0.1%
Attenuation ratio

500X

Maximum differential measurement voltage

(DC+Peak AC)

±3500Vpk
Effective value

±2475Vrms
Maximum input voltage to ground (Vrms)

1000V CATII
Common mode voltage(DC+Peak AC)

±3500Vpk
Input Impedance Single-ended to ground   5MΩ
Two input terminals  10MΩ
Input Capacitance Single-ended to ground  ＜4pF
Two input ends               ＜2pF

CMRR

 DC ＞80dB
100kHz＞60dB
1MHz＞50dB
Noise (Vrms)

＜600mV
Delay time Host: about 9ns
BNC cable 1m: about 5ns
Overload indicator voltage threshold

≥3500Vpk
Overload indicator light (red light)  Yes
Auto-save function Yes
Terminal load requirement ≥100kΩ
power supply USB 5V/1A adapter



Probe Standard Accessories


Name Object Parameters
Alligator Clips MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 0

CATIII 1000V

CATIV 600V
Test Hook MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 1

CATII 1000V
Input extension cord MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 2

CATIII 1000V
Power output line MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 3 Length 1 meter
Power adapter

USB 5V/1A
BNC output cable MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 4 Choose 1 from 3 BNC male to male output cable, length 1 meter
(for use with measuring instruments with BNC interface such as oscilloscopes and oscilloscope recorders)
BNC to banana plug MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 5 BNC male to banana output cable, length 1 meter
(For use with power analyzers, power meters, desktop multimeters and other measuring instruments with banana interface)
BNC to electronic cable MEASTEK HDP6350 High Precision Probe 500X Attenuation ±3500Vpk High Voltage Test As Low As <4pF Input Capacitance 6 BNC male to electronic output cable, length 1 meter
(for use with measuring instruments with two-terminal signal input interfaces such as data loggers and power meters)

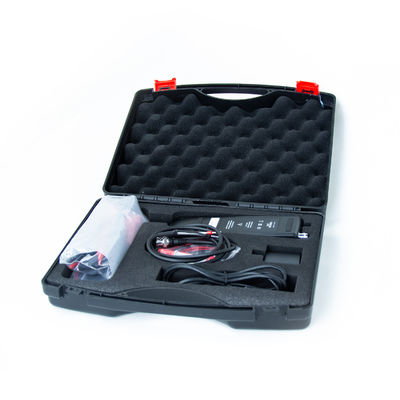

Packing List

Name
 Quantity
BNC output cable According to the host interface type:
Choose one of the three		 1 piece
BNC to banana plug
BNC to electronic cable
High Precision Differential Probe 1 piece
Alligator Clips 1 pair
Test Hook 1 pair
Input extension cord 1 pair
Power output line 1 piece
Power adapter 1 piece
Test report 1 serving
Warranty card 1 piece
Probe Box 1 piece

Note: BNC male to male output cable, BNC male to banana plug output cable, BNC male to electronic cable, three types of output cables can be selected according to the host interface input type matched by the customer.
