HCTS0300A 20mV/A High Bandwidth Flexible Current Probe - 30MHz , 0.3KA Peak Current for Small Device Currents

HCTS0300A 20mV/A High - Bandwidth Flexible Current Probe - 30MHz, 0.3KA Peak Current for Small - Device Currents

High bandwidth application

30MHz high frequency bandwidth can effectively measure high frequency current, which can be used to monitor harmonics, power and power quality, etc., and provide support for power system analysis.

Medium range precision measurement

Sensitivity 20mV/A, peak current 0.3KA, high measurement accuracy within this range, suitable for a variety of small and medium current measurement scenarios.

Small package with strong adaptability

The induction loop is small and soft, with an outer diameter of 1.6mm (1.7mm Max), and a withstand voltage of 1KVpk. It performs well in current measurement of small package devices, such as MOSFET and IGBT related measurements.

Low interference and easy connection

The insertion loss is only a few picohenries, and the interference to the measured circuit is small. The standard BNC interface is convenient for connecting various measuring instruments to achieve efficient measurement.

Safe operation and maintenance

Use USB 5V power supply, and follow safety regulations during operation, such as avoiding use in circuits with sharp corners. Regular maintenance to maintain good performance of the probe.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

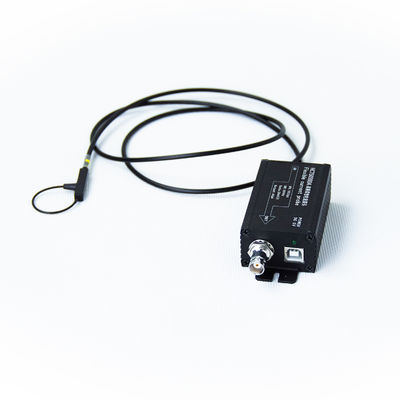

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

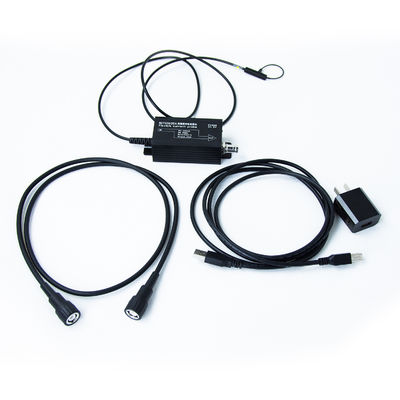

Packing List
