HCTS0030A 200mV/A Ultra sensitive Flexible Current Probe for 50/60Hz Tiny Current

HCTS0030A 200mV/A Ultra sensitive Flexible Current Probe for 50/60Hz Tiny Current

Ultra-high sensitivity measurement

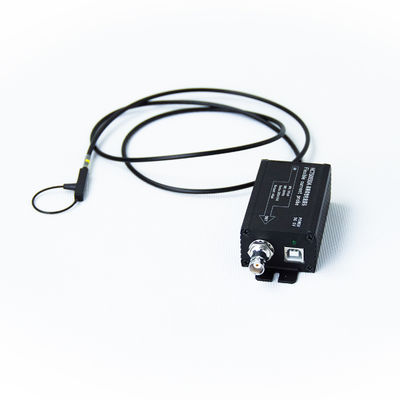

The HCTS0030A flexible current probe has a sensitivity of up to 200mV/A, which can accurately capture tiny current changes and perform well in scenarios such as measuring 50/60Hz tiny currents.

Wideband performance

With a high-frequency bandwidth of 30MHz, it can effectively detect high-frequency sinusoidal current waveforms and meet a variety of high-frequency current measurement needs.

Small package adaptation

The outer diameter of the induction loop is only 1.6mm (1.7mm Max), and the withstand voltage value is 1KVpk, which is particularly suitable for current measurement of small package devices such as MOSFET, IGBT device pins (TO-220, TO-47 packages) and capacitor ripple current measurement.

Low interference design

The insertion loss is almost zero, only a few picohenries, and the interference to the measured object is minimal. The standard BNC output interface is convenient for connecting oscilloscopes and other equipment to observe current waveforms.

Safe and convenient use

USB 5V power supply, flexible to use. Follow the specifications during operation, such as ensuring that the BNC terminal is grounded and the measured wire passes through the center of the probe ring, to ensure measurement accuracy and safety.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.

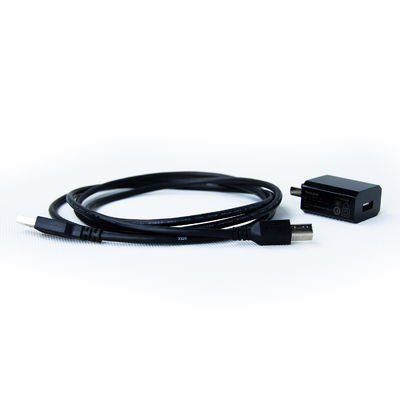

3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

Packing List
