Ultra-large range measurement expert

With a sensitivity of 0.5mV/A, it can easily measure ultra-large currents with a peak current of up to 12KA. It is the preferred tool for ultra-large current measurement in large ship power systems, large smelting equipment, etc., meeting your needs for ultra-large range current measurement. ​

Low-noise and high-precision measurement probe: With a maximum noise of 5mV Vpp, it can still maintain low noise in the case of ultra-large range measurement, providing you with high-precision current measurement data.
​
Stable attenuation control

The attenuation characteristic is 0.2%/ms, which effectively controls the signal attenuation during the measurement process and ensures the long-term stability and accuracy of the measurement data. Whether it is short-term emergency detection or long-term equipment health monitoring, it can provide you with reliable data basis.
​
Low-frequency large current probe accurate measurement

The low-frequency bandwidth -3dB is 0.2Hz, which has unique advantages in measuring low-frequency large currents. For some large equipment running at low frequencies, such as large power transformers, low-frequency motors, etc., it can accurately measure their currents and help you discover potential equipment failures in a timely manner.​

Strong and durable quality assurance

Made of high-strength materials, it has excellent impact and vibration resistance and can adapt to harsh working environments.

Application scenarios

Current monitoring of large ship power systems to ensure safe navigation; electric locomotive maintenance workshops to detect traction motor current; current detection of furnace equipment in large smelters.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

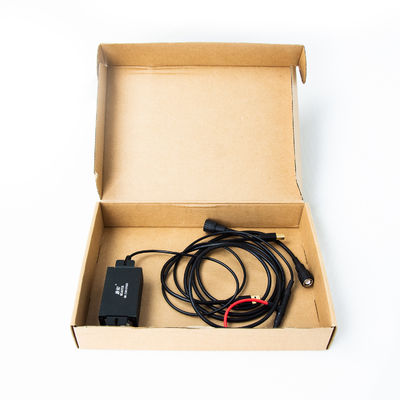

Packing List
