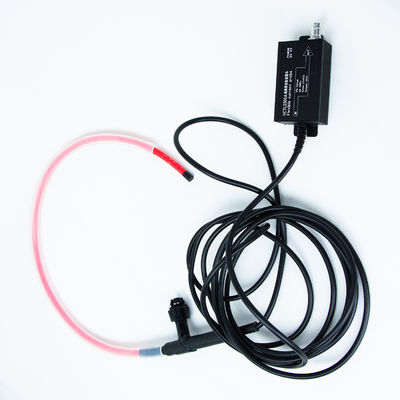

MEASTEK HCTL0300A High Current Flexible Current Probe Essential For IGBT Tube Current Measurement

MEASTEK HCTL0300A High Current Flexible Current Probe Essential For IGBT Tube Current Measurement

1.High bandwidth 10MHz, can effectively measure the harmonic composition in the current, harmonic current measurement probes are widely used in power quality monitoring.

2.Sensitivity 20mV/A, typical accuracy 1%, can accurately measure small phase shifts in sine waves, meet the requirements of accurate phase shift measurement probes, and are suitable for power electronic equipment testing.

3.Withstand voltage 10KV, can be safely used in high current and high power occasions, such as current measurement in industrial motor drive systems, high power current testing.

4.The outer diameter of the induction loop is 8mm, soft and flexible, and can easily adapt to various packaging forms in IGBT and MOSFET tube current measurement scenarios.

5.USB power supply and almost zero insertion loss, minimal interference to the object being measured, standard BNC interface conveniently connects various measuring instruments to meet scientific research and industrial testing needs.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

Packing List
