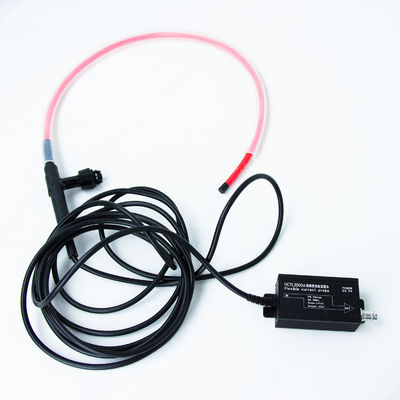

MEASTEK HCTL3000A High Frequency Flexible Current Probe - High Voltage Probe For Current Monitoring Of Industrial Equipment

MEASTEK HCTL3000A High frequency Flexible Current Probe - High voltage High current Probe for Current Monitoring of Industrial Equipment

1.10MHz high-frequency bandwidth, can accurately detect high-frequency sinusoidal current waveforms, high-frequency current measurement tools are widely used in current monitoring of industrial high-frequency heating equipment.

2.2mV/A sensitivity and 1% typical accuracy, can accurately measure tiny currents, high-precision tiny current measurement probes are suitable for tiny current fluctuation detection of electronic equipment.

3.10KV insulation withstand voltage, suitable for large current and high voltage occasions, such as industrial high-voltage motor current measurement.

4.The probe ring has an outer diameter of 8mm, which is soft and bendable. In distributed current monitoring scenarios, it can adapt to complex wiring structures.

5.USB power supply, easy operation, standard BNC output interface is convenient for connecting oscilloscopes and other devices to observe current waveform changes in real time.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

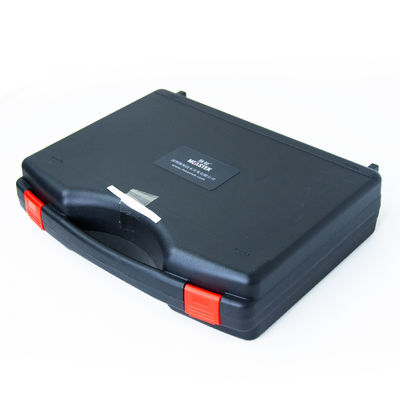

Packing List
