MEASTEK HCTL030KA Flexible Current Probe High Voltage And High Current Measuring Tool

Name: MEASTEK HCTL030KA Flexible Current Probe High Voltage And High Current Measuring Tool
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: HCTL030KA
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	HCTL030KA
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Sensitivity (mV/A):

0.2

Current (KA):

Maximum Noise (mV Vpp):

Attenuation Characteristics (%/ms):

0.2

Low Frequency Bandwidth -3dB(Hz):

0.2

High Frequency Bandwidth -3dB(MHz):

Typical Accuracy:

Insulation Voltage Value:

10KV

Highlight:

High Current Measuring Tool

Flexible Current Probe

High Voltage Current Probe

Product Description

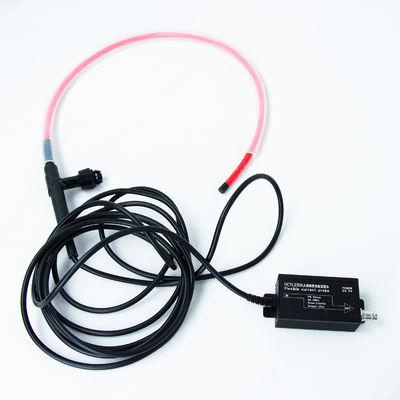

MEASTEK HCTL030KA Flexible Current Probe High Voltage And High Current Measuring Tool

The high frequency bandwidth of 10MHz can effectively measure harmonics in the current, and the power harmonic measurement equipment is widely used in the harmonics monitoring of large power transformers.

0.2mV/A sensitivity, 1% typical accuracy, can accurately measure the sine wave micro phase shift, used in power system phase calibration test.

The 10KV insulation can withstand voltage, and can be safely applied to the current measurement of large power equipment with high current and high voltage

With an outer diameter of 8mm, the induction ring is flexible and can easily pass through small Spaces in the scenario of current measurement inside a large PDC.

Specifications

Model		HCTL030KA
Sensitivity (mV/A)		0.2
Peak	Current (KA)	30
	dI/dt(KA/μs)	40
Maximum noise (mV Vpp)		3
Attenuation characteristics(%/ms)		0.2
Low frequency bandwidth -3dB(Hz)		0.2
High frequency bandwidth -3dB(MHz)		10
Typical accuracy		1%
Insulation voltage value		10KV

HCT(S)XXXXA Series Other Technical Parameters

Maximum output voltage		6Vpk
Terminal load		≥100kΩ
Power supply mode		USB 5V (standard adapter)
Operating temperature range	Integrator	0℃ - 50℃
	Probe ring	0℃ - 100℃
Storage temperature range		-40℃～80℃

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

MEASTEK HCTL030KA Flexible Current Probe High Voltage And High Current Measuring Tool 1

Mechanical specifications

Model	HCTSXXXXA
Typical value of flexible probe circumference (customizable)	80mm
Typical value of induction ring body diameter	1.6mm
Typical value of flexible probe diameter (customizable)	25mm
Induction loop connection cable length	1 M (customizable)
BNC connection cable length	1 M or 2 M, 1 M is Standard
Integrator body dimensions (including BN port dimensions)	About 110(L)47(W)30(H)mm
USB cable (AM-BM)	About 1.8m
USB output adapter	About 59mm30mm20mm
Probe weight	About 150g
Box weight (including probe)	About 960g

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

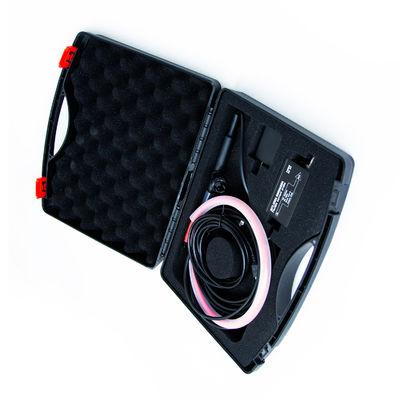

Packing List

Name	Quantity
Current probe integrator	1 piece
Current probe flexible induction coil	1 piece
USB output adapter (5V/1A)	1 piece
USB power cable	1 piece
BNC output cable	1 piece
Electronic manual	1 serving
