MCTH2000A High Precision Current Sensor 2000A Current Monitor 5kV Withstand Voltage, 1:2000 Ratio, Overload Alarm For Power Applications

Name: MCTH2000A High Precision Current Sensor 2000A Current Monitor 5kV Withstand Voltage, 1:2000 Ratio, Overload Alarm For Power Applications
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTH2000A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTH2000A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTH2000A

Maximum Current:

2000A

Accuracy:

0.01%

Bandwidth:

50KHz

Current Transfer Ratio:

1:2000

Highlight:

Power Applications Current Sensor

1:2000 Ratio Current Sensor

5kV Withstand Voltage Current Sensor

Product Description

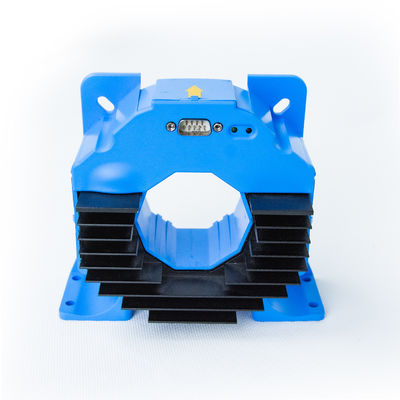

MCTH2000A High precision current sensor 2000A Current Monitor | 5kV Withstand Voltage, 1:2000 Ratio, Overload Alarm For Power Applications

1.Ultra-large current precision measurement
Maximum measurement current 2000A (DC/RMS), accuracy 0.01%, bandwidth 50kHz, supports DC, AC and irregular waveforms, suitable for high-power industrial scenarios.

2.Core technology guarantees stability
Adopting excitation flux closed-loop control and multi-point zero flux technology, combined with temperature control compensation, temperature drift ≤±0.004μA, ensuring stable operation in -10℃~+70℃ environment.

3.Low loss and high safety
Current transmission ratio 1:2000, load resistance ≤4Ω (@2000A), extremely low insertion loss; power frequency withstand voltage 5kV, insulation resistance＞2000MΩ@500V, support overload alarm (Error signal).

4.Wide range of industrial compatibility
Applicable to ship power drive, new energy inverter (photovoltaic/wind power), smart grid medium and low voltage substation and industrial motor drive system.

5.Flexible power supply adaptation
Optional ±24V dedicated power supply (such as MCTP5724VA) supports multi-channel power supply, output current 0~1.5A/channel, meeting the needs of complex system integration.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTH2000A	2000A	2000A	0.01%	50KHz	1:2000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	2000	-	3000	Adc
Corresponding measurement current range (Arms)	IP	-	2000	-	3000	Aac
Primary-secondary conversion ratio	KN	-	1:2000	-	1:5000	-
Rated output current (mArms)	Isn	Primary rated current	1000	-	600	mA
Power supply voltage (±5%)	Vc	-	-	±24	-	V
Power consumption	Ic	-	-	-	25mA +Is	mA
Load resistance (@Vc=±15V)	RL	-	≤4Ω(@Ip=DC2000A)	-	≤5Ω(@Ip=DC3000A)	Ω
Secondary resistance	Rs	-	≈4	-	≈5	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	-	5	KV
Insulation resistance	Ri	-	-	-	＞2000MΩ@DC500V	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.01	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>100	-	>100	A/μs
Frequency range	f	-	0	-	50	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+80	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±1200	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece
