UHCT0030A Ultra-high Frequency Flexible Current Probe with 200mV/A High Sensitivity 50MHz Bandwidth and 3.5mm Ultra-Thin Probe Ring for Semiconductor Testing

Name: UHCT0030A Ultra-high Frequency Flexible Current Probe with 200mV/A High Sensitivity 50MHz Bandwidth and 3.5mm Ultra-Thin Probe Ring for Semiconductor Testing
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: UHCT0030A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	UHCT0030A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Sensitivity (mV/A):

200

Peak Current (KA):

0.03

Maximum Noise (mV Vp-p):

Attenuation Characteristics (%/ms):

Low Frequency Bandwidth -3dB (Hz):

150

Peak Di/dt (A/ns):

2.0

High Frequency Bandwidth -3dB (MHz):

Storage Temperature Range:

-40℃～80℃

Highlight:

50MHz Flexible Current Probe

200mV/A Flexible Current Probe

Semiconductor Flexible Current Probe

Product Description

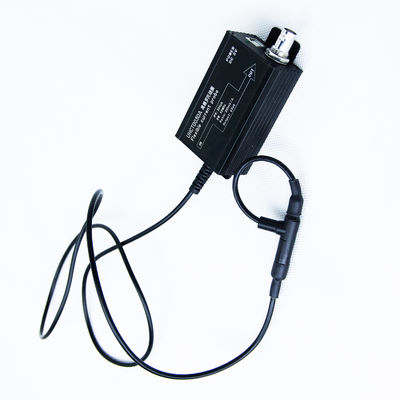

UHCT0030A Ultra-high Frequency Flexible Current Probe

200mV/A High Sensitivity 50MHz Bandwidth For Semiconductor / Low Voltage Circuit Detection

Key Features

High sensitivity: 200mV/A, accurately captures tiny current signals for precision electronic equipment detection
Peak current 0.03kA: Meets low current scenario requirements, ideal for low-voltage circuit ripple analysis
High-frequency bandwidth 50MHz: Supports high-speed pulse signal measurement, suitable for IGBT/MOSFET dynamic analysis
Low noise design: Maximum noise only 20mV Vp-p, ensuring clear and reliable data
Convenient USB power supply: Plug and play operation, no additional power adapter required

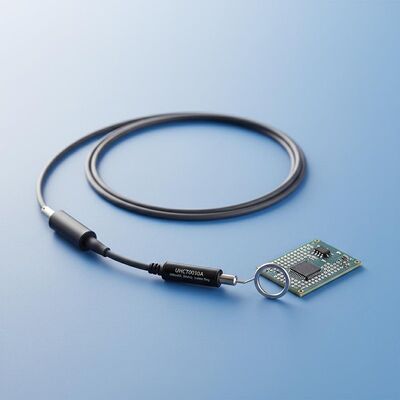

3.5mm ultra-thin probe ring: Easily handles narrow space wiring measurements

Technical Parameters

Model	UHCT0030A
Sensitivity (mV/A)	200
Peak current (kA)	0.03
Maximum noise (mV Vp-p)	20
Attenuation characteristics (%/ms)	85
Low frequency bandwidth -3dB (Hz)	150
Peak di/dt (A/ns)	2.0
High frequency bandwidth -3dB (MHz)	50

Note: If you need a larger range, please consult the manufacturer. Customization available according to your requirements.

Additional Technical Specifications

Accuracy	2%
Insulation withstand voltage value	2KV
Terminal load	≥100kΩ
Power supply method	USB 5V (standard adapter)
Ring circumference	100mm (customizable)
Coil lead length	1.0m (customizable)
Operating temperature range	Integrator: 0℃ - 50℃ Probe ring: 0℃ - 100℃
Storage temperature range	-40℃～80℃
Front end dimensions	Approx. 110(L)×45(W)×30(H)mm
Probe weight	Integrator: Approx. 125g Total weight: Approx. 180g

Product Interface Description

Input interface: Probe ring input interface
Output interface: Integrator output interface
USB 5V power supply interface: Standard USB (type B) interface, USB power supply cable included
Probe induction ring body diameter: 3.5mm
Coil circumference: 100mm

Care And Maintenance

The current transmitter can only be guaranteed to operate safely and trouble-free if it is properly transported, stored, installed, and carefully operated and maintained.

Keep the probe clean and dry, and wipe it with a soft dry cloth
When transporting the probe, put it in the standard packaging to prevent shock
Do not force the flexible probe ring and connecting wire to avoid damage due to excessive twisting, bending or knotting

Packing List

Component	Quantity
Integrator	1 piece
Flexible coil	1 piece
USB output adapter (5V/1A)	1 piece
USB power cable	1 piece
BNC output cable	1 piece
Electronic manual	1 copy

Important Measurement Notes

To ensure measurement accuracy, the measured wire should pass through the center of the probe ring during measurement
The error is greatest at the junction of the induction rings, and the measured wire should try to avoid this area
Make sure the probe ring is inserted in place (to the bottom) during measurement, otherwise it will affect the measurement accuracy
When measuring the signal, if there is a strong magnetic field interference source nearby (such as a magnetic field radiation source composed of multiple coils), it should be kept as far away as possible to prevent measurement errors
