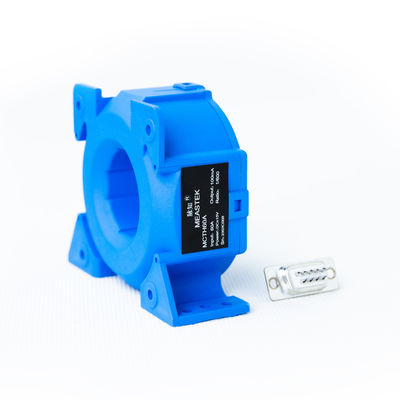

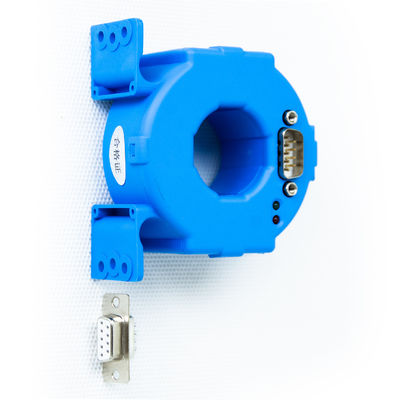

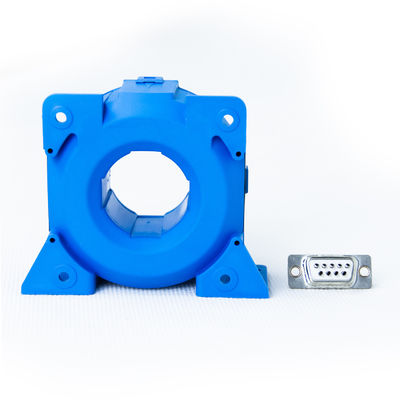

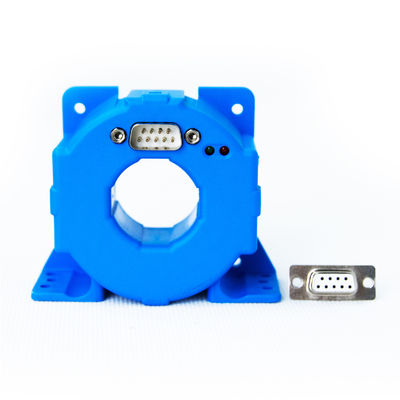

MASTEK MCTH300A 300A Ultra-Precision Current Sensor 0.01% Accuracy For Ship Propulsion & Solar Power Systems

Name: MASTEK MCTH300A 300A Ultra-Precision Current Sensor 0.01% Accuracy For Ship Propulsion & Solar Power Systems
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTH300A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTH300A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTH300A

Maximum Current:

300A

Accuracy:

0.01%

Bandwidth:

100KHz

Current Transfer Ratio:

1:2000

Implementation Standards:

EN50178

Highlight:

0.01% Accuracy Current Sensor

Ship Propulsion Current Sensor

300A Current Sensor

Product Description

MASTEK MCTH300A 300A Ultra-Precision Current Sensor 0.01% Accuracy For Ship Propulsion & Solar Power Systems

Heavy-Duty Capacity:Measures up to 300A DC/AC, tailored for ship propulsion systems and large-scale solar farms.

Zero Magnetic Flux Tech:Self-demagnetization and multi-range switching ensure stability in extreme conditions.

Low Noise Output:<1μA noise level guarantees clean signal transmission for MRI machines and satellite systems.

Quick Installation:Φ30mm aperture and 6xΦ4mm mounting holes enable seamless integration in tight spaces.

Global Support:Includes a 1-year warranty and dedicated technical support for industrial.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTH300A	300A	300A	0.01%	100KHz	1:2000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	60	-	300	Adc
Corresponding measurement current range (Arms)	IP	-	60	-	300	Aac
Primary-secondary conversion ratio	KN	-	1:600	-	1:2000	-
Rated output current (mArms)	Isn	Primary rated current	100	-	150	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	15mA +Is	-	35mA +Is	MA
Load resistance (@Vc=±15V)	RL	-	≤50Ω(@Ip=DC60A)	-	≤50Ω(@Ip=DC300A)	Ω
Secondary resistance	Rs	-	≈6	-	≈28	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	-	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	-	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.01	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>60	-	>100	A/μs
Frequency range	f	-	0	-	100	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+80	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±1200	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Structure Diagram

MASTEK MCTH300A 300A Ultra-Precision Current Sensor 0.01% Accuracy For Ship Propulsion & Solar Power Systems 0

Basic dimensional error	±0.2mm
Primary aperture	Φ30mm
Disc installation	Bottom:6 x Φ4mm Side:4 x Φ4mm
Output terminal	DB9 MALE

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece

Application Areas

Metrology: verification and calibration
Battery power supply: current measurement
Laboratory: current measurement
Ship: electric drive ship
Instrumentation (such as power analyzer)
New energy: photovoltaic, wind power
Medical equipment: scanner, MRI
Railway: high-speed train, subway, trolleybus
Power control: converter, inverter
Aerospace: satellite, rocket
Smart grid measurement: power generation, battery monitoring, medium and low voltage substation
Industrial measurement: industrial motor drive, UPS, welding, robot, crane, elevator, ski lift.
