MCTL200A 200A Precision Current Sensor with 100KHz Bandwidth for Motor Drives & Robotics

Name: MCTL200A 200A Precision Current Sensor with 100KHz Bandwidth for Motor Drives & Robotics
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTL200A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTL200A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTL200A

Maximum Current:

200A

Accuracy:

0.1%

Bandwidth:

100KHz

Current Transfer Ratio:

1:1000

Implementation Standards:

EN50178

Highlight:

Motor Drives Current Sensor

200A Precision Current Sensor

100KHz Bandwidth Current Sensor

Product Description

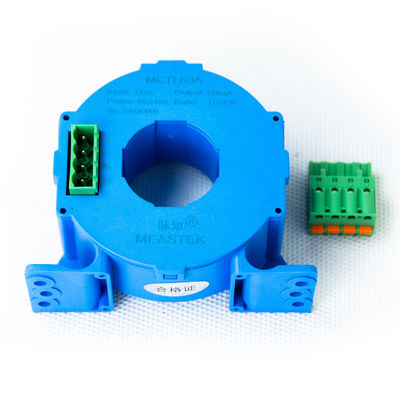

MASTEK MCTL200A 200A Precision Current Sensor with 100KHz Bandwidth for Motor Drives & Robotics

High-Speed Measurement: 100KHz bandwidth and >100A/μs slew rate, tailored for robotics and motor control systems.

Zero Magnetic Interference: Self-demagnetization technology eliminates residual flux, enhancing measurement consistency.

Plug-and-Play Design: 4-pin terminal block simplifies wiring, reducing installation time in UPS and welding equipment.

Low Insertion Loss: ≤50Ω load resistance minimizes energy loss during high-current operations.

Global Applications: Complies with international standards for use in rail transit, medical MRI, and battery management systems.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTL200A	200A	200A	0.1%	100KHz	1:1000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	60	-	300	Adc
Corresponding measurement current range (Arms)	IP	-	60	-	300	Aac
Primary-secondary conversion ratio	KN	-	1:1000	-	1:2000	-
Rated output current (mArms)	Isn	Primary rated current	60	-	150	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	15mA +Is	-	15mA +Is	MA
Load resistance (@Vc=±15V)	RL	-	≤50Ω(@Ip=DC60A)	-	≤50Ω(@Ip=DC300A)	Ω
Secondary resistance	Rs	-	≈18	-	≈18	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	-	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	-	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.1	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>100	-	>100	A/μs
Frequency range	f	-	0	-	100	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-40	-	+70	℃
Storage temperature range	Ts	-	-45	-	+85	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±203	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Structure Diagram

MCTL200A 200A Precision Current Sensor with 100KHz Bandwidth for Motor Drives & Robotics 0

Basic dimensional error	±0.2mm
Primary aperture	Φ30mm
Disc installation	Bottom:6 x Φ4mm Side:4 x Φ4mm
Output terminal	4-position plug-in terminal

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece
