MASTEK MCTL400A High Precision 400A Current Sensor , 0.1% Accuracy & 1:5000 Transfer Ratio for Heavy Industrial Systems

Name: MASTEK MCTL400A High Precision 400A Current Sensor , 0.1% Accuracy & 1:5000 Transfer Ratio for Heavy Industrial Systems
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTL400A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTL400A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTL400A

Maximum Current:

400A

Accuracy:

0.1%

Bandwidth:

100KHz

Current Transfer Ratio:

1:5000

Implementation Standards:

EN50178

Highlight:

High Precision Current Sensor

Heavy Industrial Systems Current Sensor

400A Current Sensor

Product Description

MASTEK MCTL400A High Precision 400A Current Sensor , 0.1% Accuracy & 1:5000 Transfer Ratio for Heavy Industrial Systems

Ultra-High Current Range: Measures up to 400A DC/AC with 0.1% accuracy, ideal for industrial motor drives and power inverters.

Advanced Signal Isolation: 1:5000 current transfer ratio ensures minimal signal loss and high safety in high-voltage environments.

Rugged Design: Φ40.5mm aperture and ±0.2mm dimensional tolerance for easy integration in tight spaces or heavy machinery.

Fast Response: ≤1μs response time and >100A/μs slew rate, suitable for dynamic applications like welding and robotics.

Broad Compatibility: Compatible with MCTP series power supplies, certified for EN50178 standards in renewable energy and smart grids.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTL400A	400A	400A	0.1%	100KHz	1:5000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	400	-	1000	Adc
Corresponding measurement current range (Arms)	IP	-	400	-	1000	Aac
Primary-secondary conversion ratio	KN	-	1:5000	-	1:5000	-
Rated output current (mArms)	Isn	Primary rated current	80	-	200	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	-	-	25mA +Is	MA
Load resistance (@Vc=±15V)	RL	-	≤4Ω(@Ip=DC400A)	-	≤5Ω(@Ip=DC1000A)	Ω
Secondary resistance	Rs	-	≈4	-	≈5	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	5	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	＞2000MΩ@DC500V	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.1	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	-	-	>100	A/μs
Frequency range	f	-	-	-	50	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+85	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±1200	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

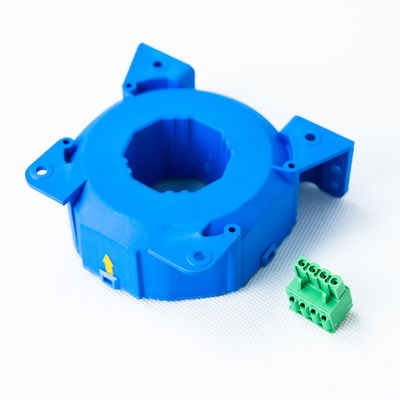

Structure Diagram

MASTEK MCTL400A High Precision 400A Current Sensor , 0.1% Accuracy & 1:5000 Transfer Ratio for Heavy Industrial Systems 0

Basic dimensional error	±0.2mm
Primary aperture	Φ40.5mm
Disc installation	Bottom:4 x Φ4mm , 2 x Φ5mm Side:4 x Φ5mm
Output terminal	4-position plug-in terminal

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece

Precautions

1. Pay attention to the exposed conductive part of the terminal when wiring, and try to prevent ESD shock. Engineers with professional construction experience are required to perform wiring operations on this product. The power supply, input, and output connection wires must be connected correctly, and cannot be misplaced or reversed, otherwise it may cause product damage.
2. The product installation and use environment should be free of conductive dust and corrosiveness.
3. The potentiometer installed on the product is used for internal debugging and calibration of the company and cannot be adjusted by the user.
4. Severe vibration or high temperature may also cause product damage, please pay attention to the use occasion.
