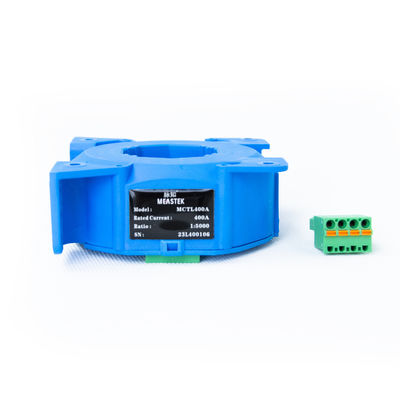

MASTEK MCTL1000A Ultra-High Current Sensor , 0.1% Accuracy for Mega Power Systems & Industrial Automation

Name: MASTEK MCTL1000A Ultra-High Current Sensor , 0.1% Accuracy for Mega Power Systems & Industrial Automation
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTL1000A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTL1000A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTL1000A

Maximum Current:

1000A

Accuracy:

0.1%

Bandwidth:

100KHz

Current Transfer Ratio:

1:5000

Implementation Standards:

EN50178

Highlight:

Ultra-High Current Sensor

Mega Power Systems Current Sensor

Industrial Automation Current Sensor

Product Description

MASTEK MCTL1000A Ultra-High Current Sensor , 0.1% Accuracy for Mega Power Systems & Industrial Automation

Mega Current Handling: Measures up to 1000A DC/AC, designed for heavy-duty applications like steel plants and substations.

Unmatched Precision: 0.1% accuracy and 1:5000 transfer ratio ensure reliable data for critical systems.

High-Speed Performance: 100KHz bandwidth and ≤1μs response time for monitoring fast transient currents.

Thermal Resilience: Operates reliably from -10°C to +70°C, with ≤5Ω load resistance to minimize heat generation.

Scalable Solutions: Compatible with multi-channel MCTP power supplies (optional), supporting complex industrial automation setups.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTL1000A	1000A	1000A	0.1%	100KHz	1:5000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	400	-	1000	Adc
Corresponding measurement current range (Arms)	IP	-	400	-	1000	Aac
Primary-secondary conversion ratio	KN	-	1:5000	-	1:5000	-
Rated output current (mArms)	Isn	Primary rated current	80	-	200	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	-	-	25mA +Is	MA
Load resistance (@Vc=±15V)	RL	-	≤4Ω(@Ip=DC400A)	-	≤5Ω(@Ip=DC1000A)	Ω
Secondary resistance	Rs	-	≈4	-	≈5	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	5	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	＞2000MΩ@DC500V	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.1	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	-	-	>100	A/μs
Frequency range	f	-	-	-	50	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+85	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±1200	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

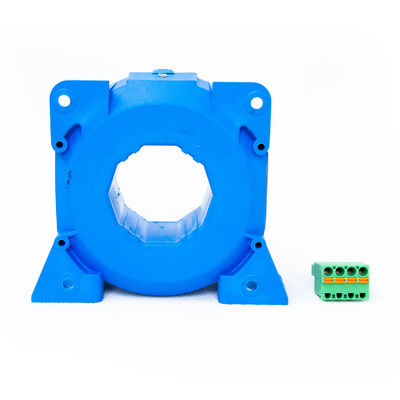

Structure Diagram

MASTEK MCTL1000A Ultra-High Current Sensor , 0.1% Accuracy for Mega Power Systems & Industrial Automation 0

Basic dimensional error	±0.2mm
Primary aperture	Φ40.5mm
Disc installation	Bottom:4 x Φ4mm , 2 x Φ5mm Side:4 x Φ5mm
Output terminal	4-position plug-in terminal

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece

Precautions

1. Pay attention to the exposed conductive part of the terminal when wiring, and try to prevent ESD shock. Engineers with professional construction experience are required to perform wiring operations on this product. The power supply, input, and output connection wires must be connected correctly, and cannot be misplaced or reversed, otherwise it may cause product damage.
2. The product installation and use environment should be free of conductive dust and corrosiveness.
3. The potentiometer installed on the product is used for internal debugging and calibration of the company and cannot be adjusted by the user.
4. Severe vibration or high temperature may also cause product damage, please pay attention to the use occasion.
