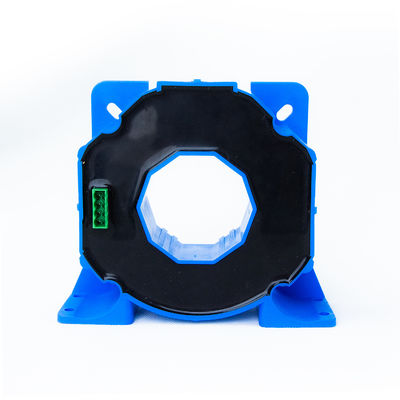

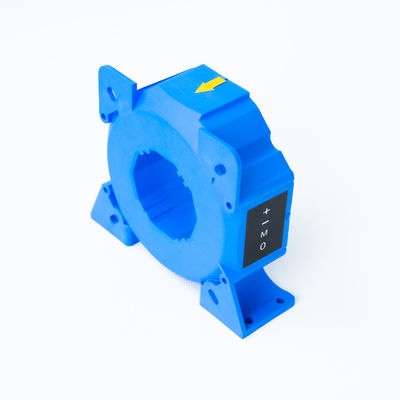

MASTEK MCTL2000A High-Precision 2000A Current Sensor , 0.1% Accuracy 50KHz Bandwidth for Industrial & Power Systems

MASTEK MCTL2000A High-Precision 2000A Current Sensor , 0.1% Accuracy 50KHz Bandwidth for Industrial & Power Systems

MASTEK MCTL2000A High-Precision 2000A Current Sensor , 0.1% Accuracy 50KHz Bandwidth for Industrial & Power Systems

Brand Name: MEASTEK
Model Number: MCTL2000A
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Model:
MCTL2000A
Maximum Current:
2000A
Accuracy:
0.1%
Bandwidth:
50KHz
Current Transfer Ratio:
1:5000
Implementation Standards:
EN50178
Highlight:

50KHz Bandwidth Current Sensor

,

High Precision Current Sensor

,

2000A Current Sensor

Product Description

MASTEK MCTL2000A High-Precision 2000A Current Sensor , 0.1% Accuracy 50KHz Bandwidth for Industrial & Power Systems


Ultra-High Current Capacity: Measures up to 2000A DC/AC with 0.1% precision, ideal for heavy machinery, power plants, and grid-scale energy monitoring.


Advanced Closed-Loop Technology: Features fluxgate control and temperature compensation for stable output, even in extreme environments (-10°C to +70°C).


Fast Response & Low Loss: ≤1μs response time and ≤4Ω load resistance ensure minimal energy loss in high-current operations like welding or robotics.


Industrial Safety Certified: 5KV insulation voltage and UL94-V0 flame-retardant housing for safe use in hazardous or high-voltage settings.


Versatile Compatibility: 1:5000 current transfer ratio and ±24V power supply support seamless integration with industrial control systems and renewable energy applications.


Specifications

Model Maximum current Accuracy Bandwidth Current transfer ratio
DC RMS

MCTL2000A

2000A

2000A

0.1%

50KHz

1:5000


Electrical properties

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Maximum continuous DC current

IPN_DC

-

2000

-

3000

Adc
Corresponding measurement current range (Arms)

IP

-

2000

-

3000

Aac
Primary-secondary conversion ratio

KN

-

1:5000

-

1:5000

-
Rated output current (mArms)

Isn

 Primary rated current

400

-

600

mA
Power supply voltage (±5%)

Vc

-

-

±24

-

V
Power consumption

Ic

-

-

-

25mA +Is

 MA
Load resistance (@Vc=±15V)

RL

-

≤4Ω(@Ip=DC2000A)

-

≤5Ω(@Ip=DC3000A)

Ω
Secondary resistance

Rs

-

≈4

-

≈5

Ω
Power frequency withstand voltage (50HZ, 1min)

Vd

-

-

-

5

KV
Insulation resistance

Ri

-

-

-

＞2000MΩ@DC500V

Ω


Accuracy Measurement

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Accuracy (@Ta = +25℃)

XG

 Input DC, full temperature range

-

-

0.1

%
Linearity error

EL

 Full range

-

-

0.005

%

Offset current (@Ta =+25℃)

Ioff

 Full temperature range

-

-

≤|±0.004|μA

μA
Response time

Tr

 di/dt=100A/μs, rise to 90% IPN

-

-

≤1

μs
Following speed

di/dt

-

-

-

>100

A/μs
Frequency range

f

-

-

-

50

KHz


General Features

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Operating temperature range

Ta

-

-10

-

+70

℃
Storage temperature range

Ts

-

-25

-

+80

℃
Working humidity (no condensation)

Hw

-

20

-

90

%
Weight

W

-

-

±1200

-

 g
Execution standard

St

EN50178
Casing material

Encl

 Compliant with UL94-V0


Structure Diagram

MASTEK MCTL2000A High-Precision 2000A Current Sensor , 0.1% Accuracy 50KHz Bandwidth for Industrial & Power Systems 0

Basic dimensional error

±0.2mm
Primary aperture

Φ60.5mm
Disc installation

Bottom:4 x Φ6.5mm        Side:4 x Φ6.5mm
Output terminal

4-position plug-in terminal


Packing List

Name Quantity
Current sensor body 1 piece
Electronic manual 1 copy
Warranty card 1 piece
