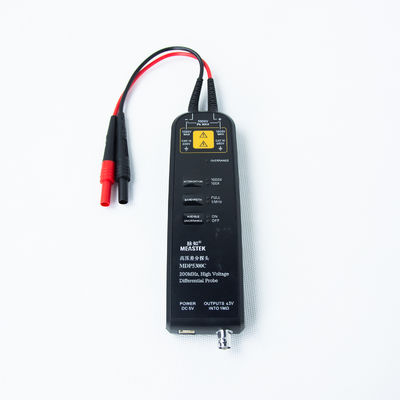

MEASTEK MDP5300C High Voltage Differential Probe 100X-1000X Attenuation Ratio, High CMRR And Low Noise

MEASTEK MDP5300C High Voltage Differential Probe 100X-1000X Attenuation Ratio, High CMRR And Low Noise

Key Features:

1. Professional-grade performance

supports up to 200MHz bandwidth and as low as 1.8ns rise time, accurately captures high-frequency signal details, suitable for scenarios such as switching power supplies and motor drives.

2. Ultra-high voltage withstand capability

Maximum differential voltage ±3000Vpk (MDP5300 series), meets CAT III 600V safety standards, and provides reliable high-voltage measurement guarantee.

3. Excellent accuracy and stability

The accuracy of the entire series is 1%, the input impedance is up to 10MΩ, and the input capacitance is as low as <2pF, ensuring distortion-free signal transmission.

4. Wide compatibility

Supports USB 5V/1A power adapter, comes with 1m BNC output cable, easily connects to oscilloscopes, data loggers and other devices.

5. Safe and convenient operation

Provides accessories such as insulated piston probe clips and input extension cables, strictly follows CAT III/IV safety standards, and comes with a 1-year warranty and test report.

Specifications

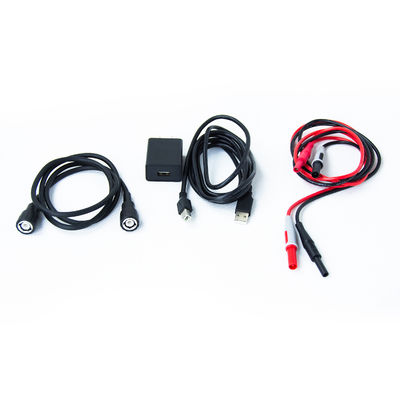

Probe Standard Accessories

Name	Object	Parameters
Alligator Clips		CATIII 1000V CATIV 600V
Piston probe clamp		CATIII 1000V
Test Hook		CATII 1000V
Input extension cord		CATIII 1000V
BNC output cable		BNC male to male output cable (length 1 meter)
Power output line		Length 1 meter
Power adapter		USB 5V/1A

FAQ

Q1: What is the maximum safe working voltage of the MDP5300A?
A1: The voltage to ground is 600V CATII/1000V CATI, the differential voltage is ±3000Vpk (1000X attenuation), it complies with CE/UL safety certification, and has built-in overload protection.

Q2: How to choose the attenuation ratio?
A2: Select according to the voltage being tested:
100X attenuation: Applicable to signals ≤±300Vpk (such as low-voltage inverter drive circuit)
1000X attenuation: Applicable to signals ≤±3000Vpk (such as high-voltage bus, IGBT collector voltage)

Q3: What is the impact of input capacitance on the test?
A3: 2pF differential input capacitance significantly reduces the load effect:
The capacitive reactance of high-frequency signals (such as 50MHz) is only about 1.6kΩ, which is much lower than that of traditional probes (5pF capacitive reactance is about 800Ω)
Measured comparison: Similar probes increase the delay of the rising edge of the IGBT drive waveform by 1.2ns, while the delay of MDP5300A is only 0.3ns
