MEASTEK HCTM030KA High Sensitivity High Frequency Flexible Current Probe 5mV Vpp Low Noise For Large Current Measurement

MEASTEK HCTM030KA High Sensitivity High Frequency Flexible Current Probe 5mV Vpp Low Noise For Large Current Measurement

Ultra-large range and high-precision measurement

With a sensitivity of 0.2mV/A, it can accurately measure peak currents up to 30KA, meeting your stringent requirements for ultra-large range and high-precision current measurement. It is a powerful assistant in the fields of high-voltage power transmission, large-scale industrial manufacturing, etc. ​

Extremely low noise interference

The maximum noise is 5mV Vpp, which effectively reduces the noise interference during the measurement process. Even in a complex electromagnetic environment, it can provide you with pure and accurate current measurement results, allowing you to have a clear and accurate understanding of the current status of the device. ​

Stable and reliable attenuation performance

The attenuation characteristic is 0.1%/ms, which ensures the stability and reliability of the measurement data. In long-term and high-demand measurement tasks, it can effectively reduce the errors caused by signal attenuation and provide you with reliable long-term monitoring data. ​

Advantages of high-frequency and large current measurement

The high-frequency bandwidth -3dB is 15MHz. For some ultra-large current signals with high-frequency components, such as high-frequency currents in large power electronic devices, it can accurately measure and meet your needs for complex current signal analysis.​

Application scenarios

high-voltage transmission line substation, monitoring bus current; current detection of collector lines in large wind farms; current measurement of auxiliary equipment in nuclear fusion experimental devices.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

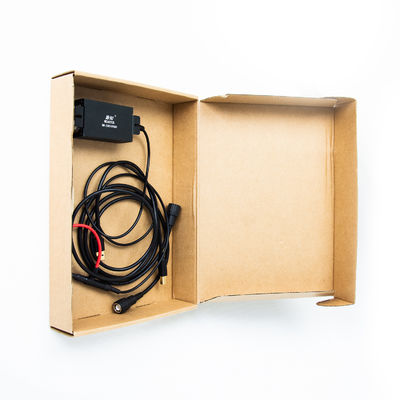

Packing List
