MCTH500A Industrial-grade Anti-interference Current Sensor 500A/0.01% Accuracy Compact Design Suitable For Rail Transit/UPS/welding Equipment

Name: MCTH500A Industrial-grade Anti-interference Current Sensor 500A/0.01% Accuracy Compact Design Suitable For Rail Transit/UPS/welding Equipment
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTH500A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTH500A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTH500A

Maximum Current:

500A

Accuracy:

0.01%

Bandwidth:

100KHz

Current Transfer Ratio:

1:2000

Highlight:

500A Current Sensor

Industrial-grade Current Sensor

0.01% Accuracy Current Sensor

Product Description

MCTH500A Industrial-grade Anti-interference Current Sensor 500A/0.01% Accuracy Compact Design Suitable For Rail Transit/UPS/welding Equipment

1. Performance upgrade
Maximum current 500A (DC/RMS), accuracy 0.01%, bandwidth 100kHz, support high dynamic response (di/dt ≥ 100A/μs).

2. Output adaptability
Current transfer ratio 1:2000, rated output current 0~250mA, can be directly connected to power analyzer or data acquisition system.

3. Anti-interference ability
Fully isolated design of primary and secondary sides, strong anti-electromagnetic interference ability, suitable for complex electromagnetic environments such as inverters and UPS.

4. Compact structure
Disc-type mounting hole design (4×Φ5mm), weight only ±600g, easy to integrate into rail transit or robot control cabinet.

5. Typical applications
Medium and low voltage substation monitoring, welding equipment current control, elevator drive system and tram power management.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTH500A	500A	500A	0.01%	100KHz	1:2000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	400	-	1000	Adc
Corresponding measurement current range (Arms)	IP	-	400	-	1000	Aac
Primary-secondary conversion ratio	KN	-	1:2000	-	1:2000	-
Rated output current (mArms)	Isn	Primary rated current	200	-	500	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	35mA +Is	-	35mA +Is	mA
Load resistance (@Vc=±15V)	RL	-	≤50Ω(@Ip=DC400A)	-	≤50Ω(@Ip=DC1000A)	Ω
Secondary resistance	Rs	-	≈15	-	≈15	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	-	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	-	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.01	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>100	-	>100	A/μs
Frequency range	f	-	-	-	100	kHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+80	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±600	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Structure Diagram

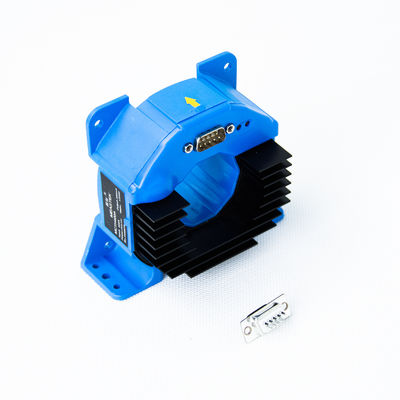

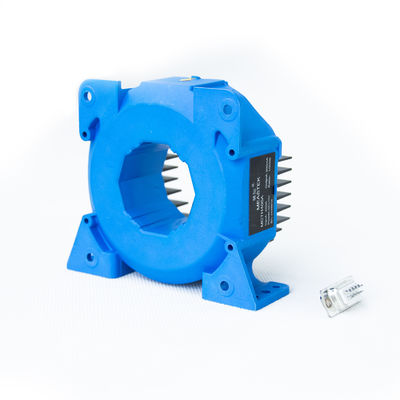

MCTH500A Industrial-grade Anti-interference Current Sensor 500A/0.01% Accuracy Compact Design Suitable For Rail Transit/UPS/welding Equipment 0

Basic dimensional error	±0.2mm
Primary aperture	Φ40.5mm
Disc installation	Bottom:4 x Φ4mm,2 x Φ5mm Side:4 x Φ5mm
Output terminal	DB9 MALE

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece
