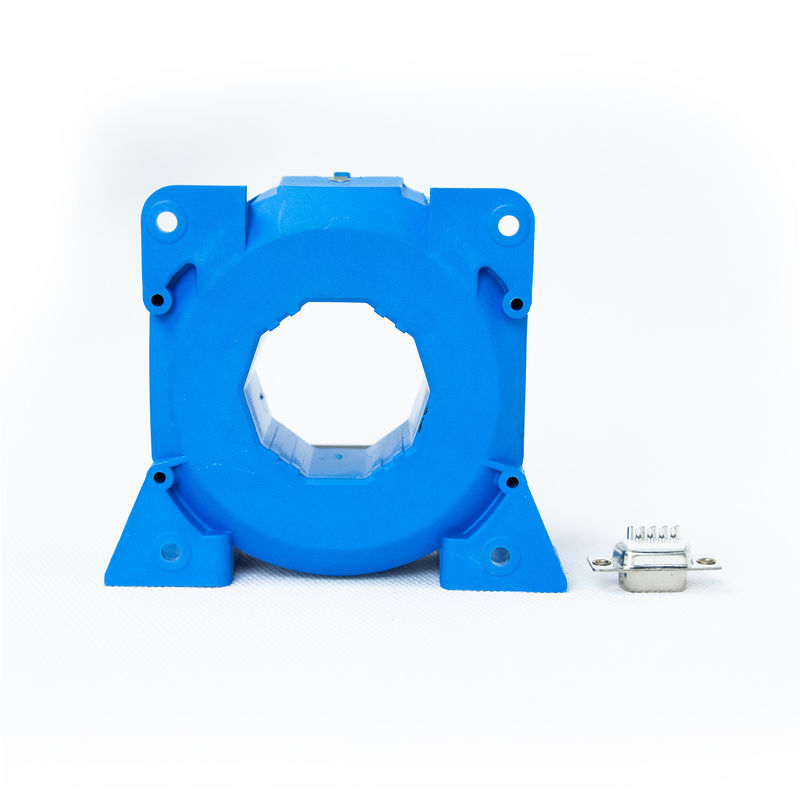

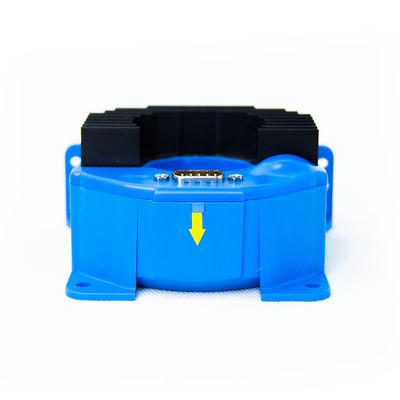

MCTH700A High Current Broadband Sensor 700A/0.01% Accuracy 1μs Fast Response Special For Wind Power/ship/robot Drive

MCTH700A High Current Broadband Sensor 700A/0.01% Accuracy 1μs Fast Response Special For Wind Power/ship/robot Drive

MCTH700A High Current Broadband Sensor 700A/0.01% Accuracy 1μs Fast Response Special For Wind Power/ship/robot Drive

Brand Name: MEASTEK
Model Number: MCTH700A
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Model:
MCTH700A
Maximum Current:
700A
Accuracy:
0.01%
Bandwidth:
100KHz
Current Transfer Ratio:
1:1750
Highlight:

700A Broadband Sensor

,

0.01% Accuracy Broadband Sensor

,

1μs Fast Response Broadband Sensor

Product Description

MCTH700A High current broadband sensor 700A/0.01% accuracy 1μs fast response Special for wind power/ship/robot drive


1. Flexible adaptation of large current
Maximum current 700A (DC/RMS), current transfer ratio 1:1750, output range 0~400mA, suitable for high-power industrial scenarios.


2. Fast dynamic response
Response time ≤1μs, supports transient current capture, suitable for high-frequency power electronic equipment such as inverters and converters.


3. Wide temperature range stability
Temperature control compensation technology ensures no performance degradation at storage temperature of -25℃~+80℃, suitable for outdoor new energy power stations.


4. Low load resistance requirements
Load resistance ≤50Ω (@700A), reduces system power consumption, and is suitable for heavy equipment such as cranes and ski lifts.


5. Core application areas
Wind power converter monitoring, industrial robot joint drive, ship power system and aerospace ground testing.


Specifications

Model Maximum current Accuracy Bandwidth Current transfer ratio
DC RMS

MCTH700A

700A

700A

0.01%

100KHz

1:1750


Electrical properties

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Maximum continuous DC current

IPN_DC

-

400

-

1000

Adc
Corresponding measurement current range (Arms)

IP

-

400

-

1000

Aac
Primary-secondary conversion ratio

KN

-

1:2000

-

1:2000

-
Rated output current (mArms)

Isn

 Primary rated current

200

-

500

mA
Power supply voltage (±5%)

Vc

-

-

±15

-

V
Power consumption

Ic

-

35mA +Is

-

35mA +Is

 mA
Load resistance (@Vc=±15V)

RL

-

≤50Ω(@Ip=DC400A)

-

≤50Ω(@Ip=DC1000A)

Ω
Secondary resistance

Rs

-

≈15

-

≈15

Ω
Power frequency withstand voltage (50HZ, 1min)

Vd

-

-

5

-

KV
Insulation resistance

Ri

-

-

＞2000MΩ@DC500V

-

Ω


Accuracy Measurement

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Accuracy (@Ta = +25℃)

XG

 Input DC, full temperature range

-

-

0.01

%
Linearity error

EL

 Full range

-

-

0.005

%

Offset current (@Ta =+25℃)

Ioff

 Full temperature range

-

-

≤|±0.004|μA

μA
Response time

Tr

 di/dt=100A/μs, rise to 90% IPN

-

-

≤1

μs
Following speed

di/dt

-

>100

-

>100

A/μs
Frequency range

f

-

-

-

100

kHz


General Features

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Operating temperature range

Ta

-

-10

-

+70

℃
Storage temperature range

Ts

-

-25

-

+80

℃
Working humidity (no condensation)

Hw

-

20

-

90

%
Weight

W

-

-

±600

-

 g
Execution standard

St

EN50178
Casing material

Encl

 Compliant with UL94-V0


Packing List

Name Quantity
Current sensor body 1 piece
Electronic manual 1 copy
Warranty card 1 piece
