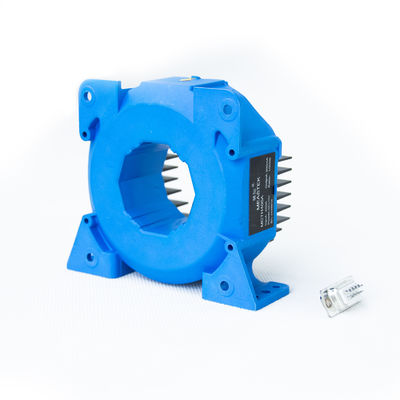

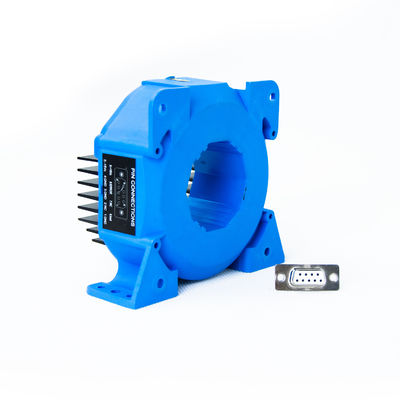

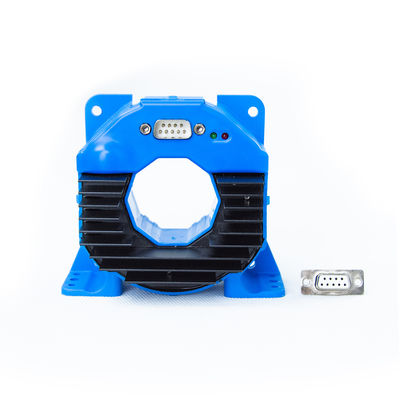

Multi-Level Range Automatic Switching MCTH1000A UL94-V0 Certified Current Sensor for Speed Rail/Aerospace Applications

Name: Multi-Level Range Automatic Switching MCTH1000A UL94-V0 Certified Current Sensor for Speed Rail/Aerospace Applications
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTH1000A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTH1000A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTH1000A

Maximum Current:

1000A

Accuracy:

0.01%

Bandwidth:

100KHz

Current Transfer Ratio:

1:2000

Highlight:

Aerospace Applications Current Sensor

UL94-V0 Certified Current Sensor

Multi-Level Range Current Sensor

Product Description

MCTH1000A UL94-V0 certified current sensor 1000A/0.01% accuracy Multi-level range automatic switching Smart grid/high-speed rail/aerospace applications

1. Ultra-large current measurement
Maximum current 1000A (DC/RMS), accuracy 0.01%, bandwidth 100kHz, meeting the needs of power systems and heavy industry.

2. High output capacity
Current transfer ratio 1:2000, rated output 0~500mA, can directly drive high-load instruments or remote monitoring systems.

3. Strong environmental adaptability
The housing complies with the UL94-V0 flame retardant standard, corrosion-resistant and dust-proof design, suitable for harsh environments such as steel smelting and chemical industry.

4. Multi-level range switching
Automatic switching technology realizes 400A~1000A wide range measurement, avoiding manual adjustment and improving efficiency.

5. Typical scenarios
Smart grid power generation monitoring, high-speed train traction system, satellite power management and nuclear magnetic resonance equipment current control.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTH1000A	1000A	1000A	0.01%	100KHz	1:2000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	400	-	1000	Adc
Corresponding measurement current range (Arms)	IP	-	400	-	1000	Aac
Primary-secondary conversion ratio	KN	-	1:2000	-	1:2000	-
Rated output current (mArms)	Isn	Primary rated current	200	-	500	mA
Power supply voltage (±5%)	Vc	-	-	±15	-	V
Power consumption	Ic	-	35mA +Is	-	35mA +Is	mA
Load resistance (@Vc=±15V)	RL	-	≤50Ω(@Ip=DC400A)	-	≤50Ω(@Ip=DC1000A)	Ω
Secondary resistance	Rs	-	≈15	-	≈15	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	5	-	KV
Insulation resistance	Ri	-	-	＞2000MΩ@DC500V	-	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.01	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>100	-	>100	A/μs
Frequency range	f	-	-	-	100	kHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+80	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±600	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece
