MCTH3000A Industrial-Grade 3000A Meter Auto-Level Switching Anti-EMI Design -25C To 80C Extreme Adaptability 50KHz Bandwidth

Name: MCTH3000A Industrial-Grade 3000A Meter Auto-Level Switching Anti-EMI Design -25C To 80C Extreme Adaptability 50KHz Bandwidth
Brand: Shenzhen Knowhow Technology Co.,limited
SKU: MCTH3000A
Price: 52.50 USD
Availability: InStock

Brand Name:	MEASTEK
Model Number:	MCTH3000A
MOQ:	1
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model:

MCTH3000A

Maximum Current:

3000A

Accuracy:

0.01%

Bandwidth:

50KHz

Current Transfer Ratio:

1:5000

Highlight:

Industrial-Grade 3000A Meter

Auto-Level Switching 3000A Meter

50KHz Bandwidth 3000A Meter

Product Description

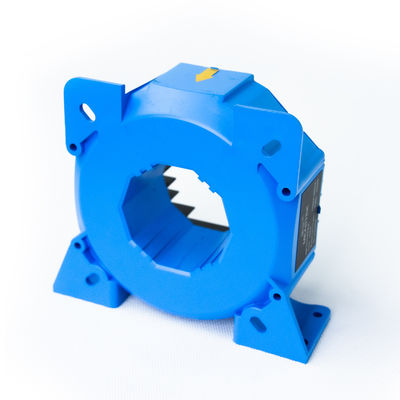

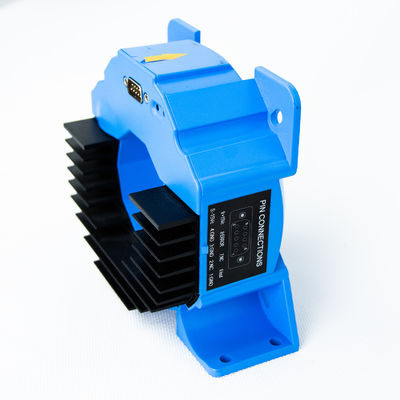

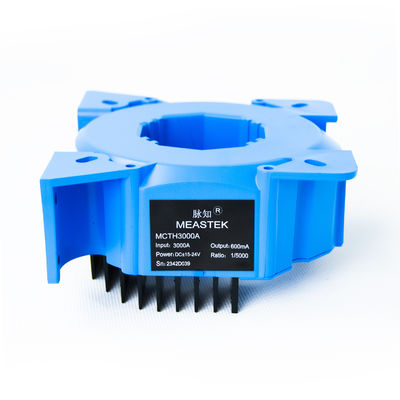

MEASTEK MCTH3000A Industrial-Grade 3000A Meter | Auto-Level Switching, Anti-EMI Design, -25℃ To 80℃ Extreme Adaptability

1. Super strong current carrying capacity
Maximum current 3000A (DC/RMS), accuracy 0.01%, bandwidth 50kHz, current transfer ratio 1:5000, specially designed for heavy industry and power systems.

2. Multi-level automatic switching
Automatic switching technology covers a wide range of 2000A~3000A measurement, avoiding manual adjustment, improving efficiency, and adapting to ultra-large current scenarios such as power plants and steel smelting.

3. Anti-interference and fast response
Fully isolated design of primary and secondary sides, strong anti-electromagnetic interference ability; response time ≤1μs, follow-up speed ≥100A/μs, accurately capture transient current changes.

4. Harsh environment adaptability
The shell meets the UL94-V0 flame retardant standard, corrosion-resistant and dust-proof design, supports -25℃~+80℃ storage temperature, suitable for outdoor power stations or chemical environments.

5. Highly integrated test solution
It can be used with a mobile multi-channel high-current test platform (optional), supporting solutions with copper busbar/copper cable size > 60.5mm, suitable for high-end fields such as satellite power supply and high-speed train traction system.

Specifications

Model	Maximum current		Accuracy	Bandwidth	Current transfer ratio
	DC	RMS
MCTH3000A	3000A	3000A	0.01%	50KHz	1:5000

Electrical properties

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Maximum continuous DC current	IPN_DC	-	2000	-	3000	Adc
Corresponding measurement current range (Arms)	IP	-	2000	-	3000	Aac
Primary-secondary conversion ratio	KN	-	1:2000	-	1:5000	-
Rated output current (mArms)	Isn	Primary rated current	1000	-	600	mA
Power supply voltage (±5%)	Vc	-	-	±24	-	V
Power consumption	Ic	-	-	-	25mA +Is	mA
Load resistance (@Vc=±15V)	RL	-	≤4Ω(@Ip=DC2000A)	-	≤5Ω(@Ip=DC3000A)	Ω
Secondary resistance	Rs	-	≈4	-	≈5	Ω
Power frequency withstand voltage (50HZ, 1min)	Vd	-	-	-	5	KV
Insulation resistance	Ri	-	-	-	＞2000MΩ@DC500V	Ω

Accuracy Measurement

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Accuracy (@Ta = +25℃)	XG	Input DC, full temperature range	-	-	0.01	%
Linearity error	EL	Full range	-	-	0.005	%
Offset current (@Ta =+25℃)	Ioff	Full temperature range	-	-	≤\|±0.004\|μA	μA
Response time	Tr	di/dt=100A/μs, rise to 90% IPN	-	-	≤1	μs
Following speed	di/dt	-	>100	-	>100	A/μs
Frequency range	f	-	0	-	50	KHz

General Features

Item	Symbol	Test Conditions	Minimum	Nominal	Maximum	Unit
Operating temperature range	Ta	-	-10	-	+70	℃
Storage temperature range	Ts	-	-25	-	+80	℃
Working humidity (no condensation)	Hw	-	20	-	90	%
Weight	W	-	-	±1200	-	g
Execution standard	St	EN50178
Casing material	Encl	Compliant with UL94-V0

Packing List

Name	Quantity
Current sensor body	1 piece
Electronic manual	1 copy
Warranty card	1 piece
