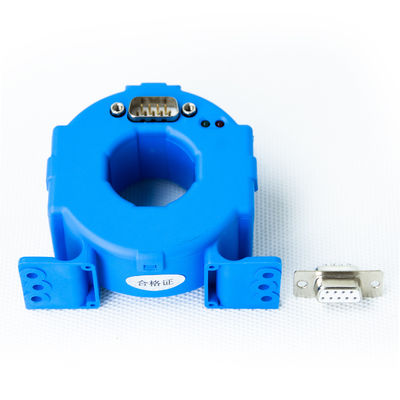

Mastek MCTH60A High Precision Current Sensor 60A DC~100KHz 0.01% Accuracy For Medical, Aerospace & Industrial Applications

Mastek MCTH60A High Precision Current Sensor 60A DC~100KHz 0.01% Accuracy For Medical, Aerospace & Industrial Applications

Mastek MCTH60A High Precision Current Sensor 60A DC~100KHz 0.01% Accuracy For Medical, Aerospace & Industrial Applications

Brand Name: MEASTEK
Model Number: MCTH60A
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Model:
MCTH60A
Maximum Current:
60A
Accuracy:
0.01%
Bandwidth:
100KHz
Current Transfer Ratio:
1:600
Implementation Standards:
EN50178
Highlight:

0.01% Accuracy Current Sensor

,

High Precision Current Sensor

,

60A Current Sensor

Product Description

Mastek MCTH60A High Precision Current Sensor 60A DC~100KHz 0.01% Accuracy for Medical, Aerospace & Industrial Applications


Ultra-High Accuracy:0.01% precision ensures reliable measurement for critical applications like medical MRI and aerospace systems.


Wide Frequency Range:Supports DC to 100KHz, ideal for analyzing complex waveforms in power electronics and renewable energy systems.


Advanced Isolation Technology:Fully isolated primary and secondary sides enhance safety and reduce electromagnetic interference.


Compact & Durable Design:Lightweight (±600g) with UL94-V0 compliant housing, suitable for harsh industrial environments.


Easy Integration:Standard DB9 output port and ±15V power supply compatibility simplify installation and connectivity.


Specifications

Model Maximum current Accuracy Bandwidth Current transfer ratio
DC RMS

MCTH60A

60A

60A

0.01%

100KHz

1:600


Electrical properties

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Maximum continuous DC current

IPN_DC

-

60

-

300

Adc
Corresponding measurement current range (Arms)

IP

-

60

-

300

Aac
Primary-secondary conversion ratio

KN

-

1:600

-

1:2000

-
Rated output current (mArms)

Isn

 Primary rated current

100

-

150

mA
Power supply voltage (±5%)

Vc

-

-

±15

-

V
Power consumption

Ic

-

15mA +Is

-

35mA +Is

 MA
Load resistance (@Vc=±15V)

RL

-

≤50Ω(@Ip=DC60A)

-

≤50Ω(@Ip=DC300A)

Ω
Secondary resistance

Rs

-

≈6

-

≈28

Ω
Power frequency withstand voltage (50HZ, 1min)

Vd

-

-

5

-

KV
Insulation resistance

Ri

-

-

＞2000MΩ@DC500V

-

Ω


Accuracy Measurement

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Accuracy (@Ta = +25℃)

XG

 Input DC, full temperature range

-

-

0.01

%
Linearity error

EL

 Full range

-

-

0.005

%

Offset current (@Ta =+25℃)

Ioff

 Full temperature range

-

-

≤|±0.004|μA

μA
Response time

Tr

 di/dt=100A/μs, rise to 90% IPN

-

-

≤1

μs
Following speed

di/dt

-

>60

-

>100

A/μs
Frequency range

f

-

0

-

100

KHz


General Features

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Operating temperature range

Ta

-

-10

-

+70

℃
Storage temperature range

Ts

-

-25

-

+80

℃
Working humidity (no condensation)

Hw

-

20

-

90

%
Weight

W

-

-

±1200

-

 g
Execution standard

St

EN50178
Casing material

Encl

 Compliant with UL94-V0


Structure Diagram

Mastek MCTH60A High Precision Current Sensor 60A DC~100KHz 0.01% Accuracy For Medical, Aerospace & Industrial Applications 0

Basic dimensional error

±0.2mm
Primary aperture

Φ30mm
Disc installation

Bottom:6 x Φ4mm        Side:4 x Φ4mm
Output terminal

DB9 MALE


Packing List

Name Quantity
Current sensor body 1 piece
Electronic manual 1 copy
Warranty card 1 piece
