MASTEK MCTL3000A 3000A Ultra-High Current Sensor , 0.1% Accuracy 50KHz Bandwidth For Mega Power & Industrial Automation

MASTEK MCTL3000A 3000A Ultra-High Current Sensor , 0.1% Accuracy 50KHz Bandwidth For Mega Power & Industrial Automation

MASTEK MCTL3000A 3000A Ultra-High Current Sensor , 0.1% Accuracy 50KHz Bandwidth For Mega Power & Industrial Automation

Brand Name: MEASTEK
Model Number: MCTL3000A
MOQ: 1
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Model:
MCTL3000A
Maximum Current:
3000A
Accuracy:
0.1%
Bandwidth:
50KHz
Current Transfer Ratio:
1:5000
Implementation Standards:
EN50178
Highlight:

50KHz Bandwidth Ultra-High Current Sensor

,

3000A Ultra-High Current Sensor

,

Industrial Automation Ultra-High Current Sensor

Product Description

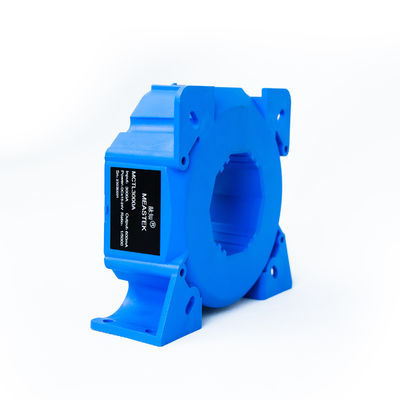

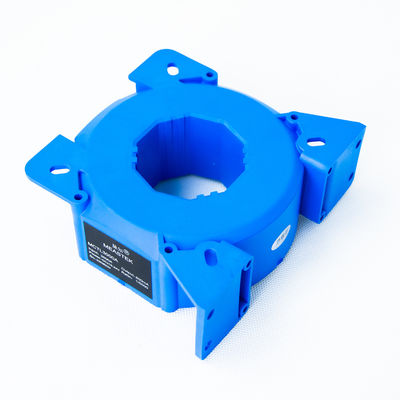

MASTEK MCTL3000A 3000A Ultra-High Current Sensor, 0.1% Accuracy, 50KHz Bandwidth for Mega Power & Industrial Automation


Mega Current Measurement: Handles up to 3000A DC/AC with 0.1% accuracy, designed for steel plants, substations, and heavy industrial automation.


Robust Signal Integrity: Multi-point zero-flux technology and 1:5000 transfer ratio minimize noise and interference in critical systems.


High-Speed Performance: >100A/μs slew rate and 50KHz bandwidth for real-time monitoring of fast transient currents in UPS or motor drives.


Durable Construction: Φ60.5mm aperture and 4 x Φ6.5mm mounting holes ensure secure installation in high-vibration environments like cranes or elevators.


Global Compliance: Meets EN50178 standards, widely used in aerospace, marine propulsion, and smart grid infrastructure.


Specifications

Model Maximum current Accuracy Bandwidth Current transfer ratio
DC RMS

MCTL3000A

3000A

3000A

0.1%

50KHz

1:5000


Electrical properties

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Maximum continuous DC current

IPN_DC

-

2000

-

3000

Adc
Corresponding measurement current range (Arms)

IP

-

2000

-

3000

Aac
Primary-secondary conversion ratio

KN

-

1:5000

-

1:5000

-
Rated output current (mArms)

Isn

 Primary rated current

400

-

600

mA
Power supply voltage (±5%)

Vc

-

-

±24

-

V
Power consumption

Ic

-

-

-

25mA +Is

 MA
Load resistance (@Vc=±15V)

RL

-

≤4Ω(@Ip=DC2000A)

-

≤5Ω(@Ip=DC3000A)

Ω
Secondary resistance

Rs

-

≈4

-

≈5

Ω
Power frequency withstand voltage (50HZ, 1min)

Vd

-

-

-

5

KV
Insulation resistance

Ri

-

-

-

＞2000MΩ@DC500V

Ω


Accuracy Measurement

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Accuracy (@Ta = +25℃)

XG

 Input DC, full temperature range

-

-

0.1

%
Linearity error

EL

 Full range

-

-

0.005

%

Offset current (@Ta =+25℃)

Ioff

 Full temperature range

-

-

≤|±0.004|μA

μA
Response time

Tr

 di/dt=100A/μs, rise to 90% IPN

-

-

≤1

μs
Following speed

di/dt

-

-

-

>100

A/μs
Frequency range

f

-

-

-

50

KHz


General Features

Item Symbol Test Conditions Minimum Nominal Maximum Unit
Operating temperature range

Ta

-

-10

-

+70

℃
Storage temperature range

Ts

-

-25

-

+80

℃
Working humidity (no condensation)

Hw

-

20

-

90

%
Weight

W

-

-

±1200

-

 g
Execution standard

St

EN50178
Casing material

Encl

 Compliant with UL94-V0


Structure Diagram

MASTEK MCTL3000A 3000A Ultra-High Current Sensor , 0.1% Accuracy 50KHz Bandwidth For Mega Power & Industrial Automation 0

Basic dimensional error

±0.2mm
Primary aperture

Φ60.5mm
Disc installation

Bottom:4 x Φ6.5mm        Side:4 x Φ6.5mm
Output terminal

4-position plug-in terminal


Packing List

Name Quantity
Current sensor body 1 piece
Electronic manual 1 copy
Warranty card 1 piece
